Mean Well MFM-15-24 SMPSU 24V 0.63A high efficiency medical power supply

Mean Well
Order Code:

05-1152

Brand: Mean Well MPN: MFM-15-24 EAN-13: 4021087048965
Qty Unit Price (Ex VAT)
1+ £12.23
5+ £11.86
10+ £11.49
25+ £11.02
50+ £10.63
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 26/12/2025

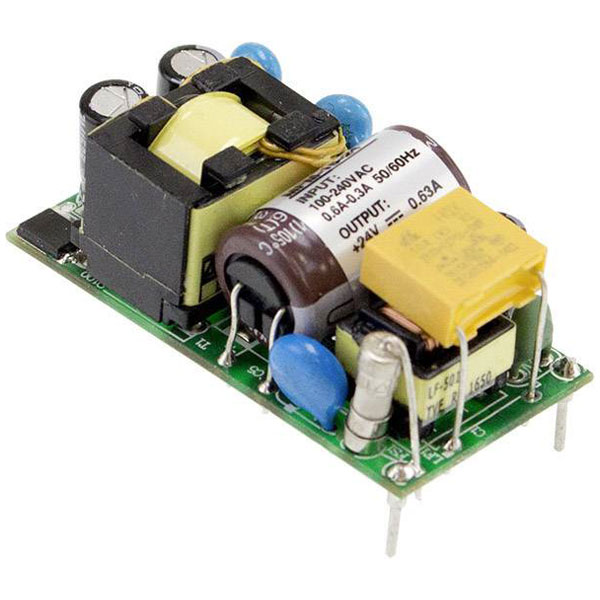

The Mean Well MFM-15-24 is a printed circuit board power supply unit with a voltage output of 24 V DC and a current output of 0.63 A, offering 15.1 W of power. Designed for PCB mount, it features solder pins for easy installation. It is commonly used in embedded applications where a compact and efficient power supply is required.
Type SMPSU
Output Voltage 24V DC
Output Current 630mA
Number of Outputs 1
Power Rating 15.1W
Connection Solder pins
Dim (L x W x H) 49 x 23.8 x 23 mm
Height 23mm
Input voltage (max.) 264V AC
Length 49mm
Max. output current 0.63A
Max. temperature +85°C
Min. input voltage 80V AC
Min. temperature -35°C
Misc Attribute 2 Pulsed
Misc Attribute 3 open
MTBF 121000h
Number of Inputs 1
PFC No
Width 23.8mm
