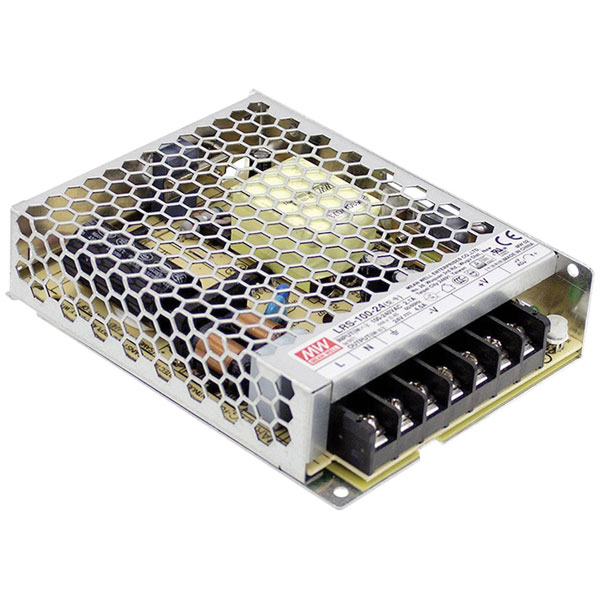

Mean Well LRS-100N2-12 smpsu 12V 8.5A 102W closed design screw terminals

Image Representative of Range

Mean Well LRS-100N2-12 smpsu 12V 8.5A 102W closed design screw terminals

Mean Well
Order Code:

05-1065

Brand: Mean Well MPN: LRS-100N2-12 EAN-13: 4021087092418
Qty Unit Price (Ex VAT)
1+ £21.16
5+ £20.12
10+ £19.06
25+ £17.99
50+ £16.94
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 13/12/2025

The Mean Well LRS-100N2-12 is a 12 V, 8.5 A, 102 W switch mode power supply unit designed for PCB mounting with solder lugs and screw terminals. This compact and efficient circuit board PSU is ideal for industrial and commercial applications that require stable power delivery. Typical uses include powering LEDs, communications equipment, and control systems in environments with limited space.
Connection Screw terminal
Dim (L x W x H) 129 x 97 x 30 mm
Height 30mm
Length 129mm
Max. operating temperature (derating) +70°C
Max. output current 8.5A
Min. operating temperature (derating) +30°C
Misc Attribute 2 closed
MTBF 536600h
Number of Outputs 1
Output current (max.) - rounded 8.5A
Output voltage (max.) 12V
Power 102W
Type SMPSU
Width 97mm
