Mean Well LPV-100-48 LED transformer 100W 48V IP67 surge protection

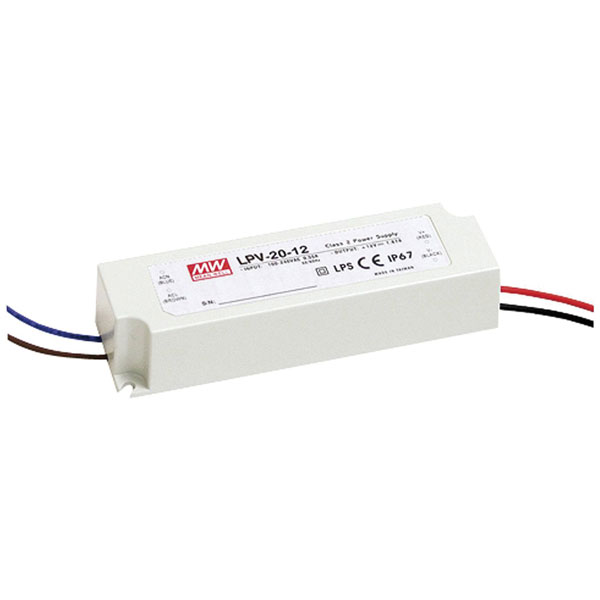

Image Representative of Range

Mean Well LPV-100-48 LED transformer 100W 48V IP67 surge protection

Mean Well
Standard range
Order Code:

05-1046

Brand: Mean Well MPN: LPV-100-48
Qty Unit Price (Ex VAT)
1+ £64.56
5+ £61.34
10+ £58.10
25+ £54.88
50+ £53.07
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
8 in stock, despatched in 4 working days

The Mean Well LPV-100-48 is a 100 W LED transformer designed to provide a constant 48 V DC voltage with a current rating of 0 - 2.1 A. It features a power factor correction (PFC) circuit and surge protection, ensuring reliable and stable performance. This LED transformer is suited for various LED applications, such as power supply for LED strips and installations requiring non-dimmable constant voltage.
Type LED transformer
Connection Open end cable
Dim (L x W x H) 190 x 52 x 37 mm
Height 37mm
Input voltage (max.) 264V AC
IP rating IP67
Length 190mm
Max. output current 2.1A
Max. power 100W
Min. input voltage 90V AC
Misc Attribute 1 Constant voltage
Misc Attribute 2 Synchronised
No. of inputs 1
No. of outputs 1
Output current (max.) - rounded 2.1A
Output current (min.) 0A
Output voltage (max.) 48V DC
Power range 100 W (max)
Weight 630g
Width 52mm
