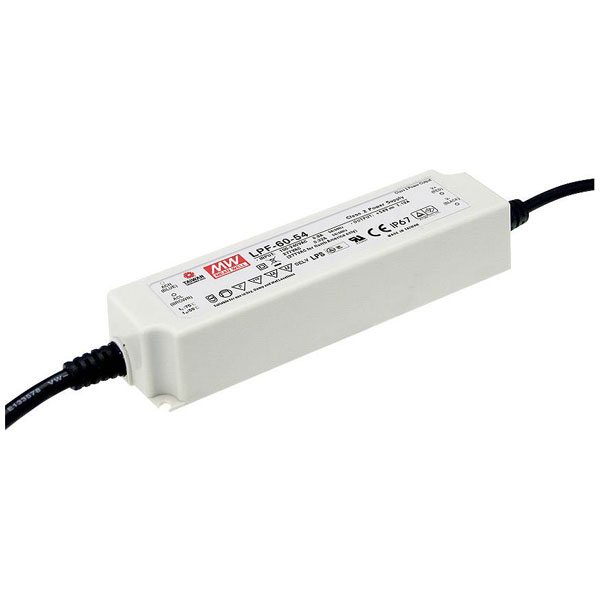

Mean Well LPF-60-24 LED Driver 60W 2.5A 24V DC IP67 Non-dimmable

Mean Well
Order Code:

05-1034

Brand: Mean Well MPN: LPF-60-24 EAN-13: 4021087007429
Qty Unit Price (Ex VAT)
1+ £26.96
5+ £26.28
10+ £25.61
25+ £24.34
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 12/12/2025

The mean well LPF-60-24 is an LED driver offering constant voltage and constant current output of 60 W, 2.5 A, and 14.4 - 24 V DC. It includes a PFC circuit and surge protection for reliable operation. Typical applications include powering LED strips and other LED lighting solutions.
Type LED driver
Connection Open end cable
Dim (L x W x H) 162.50 x 42.50 x 32.00 mm
Height 32.00mm
Input voltage (max.) 305V AC
IP Rating IP67
Length 162.50mm
Max. output current 2.5A
Max. power 60W
Min. input voltage 90V AC
Misc Attribute Synchronised
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 2.5A
Output voltage (max.) 24V DC
Output voltage (min.) 14.4V DC
Power range 60 W (max)
Protection Class II
Width 42.50mm
