Mean Well LDH-45B-700DA LED driver 700mA 44.8W dimmable DALI 36-64V

Mean Well
Standard range
Order Code:

05-1012

Brand: Mean Well MPN: LDH-45B-700DA
Qty Unit Price (Ex VAT)
1+ £17.49
5+ £16.96
10+ £16.42
25+ £15.91
50+ £15.40
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

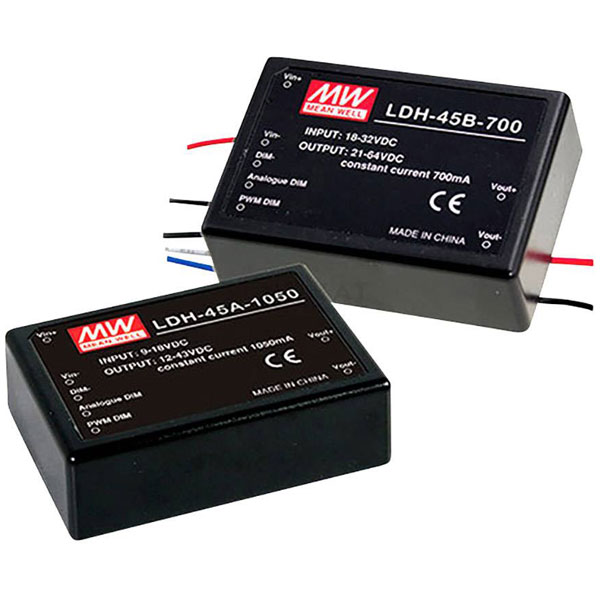

The Mean Well LDH-45B-700DA is a LED driver delivering a constant current of 700 mA with a power output of 44.8 W, designed for LED lighting applications. It supports a voltage range of 36 - 64 V DC and is dimmable via DALI. Features include surge protection and overvoltage protection, making it suitable for various indoor or outdoor LED installations.
Type LED driver
Connection Pins
Dim (L x W x H) 75 x 53 x 22.7 mm
Factory colour Black
Height 22.7mm
Input voltage (max.) 32V DC
Length 75mm
Max. output current 700mA
Max. power 44.8W
Max. temperature +70°C
Min. input voltage 18V DC
Min. temperature -40°C
Misc Attribute Constant current
No. of inputs 1
No. of outputs 1
Output current (max.) - rounded 700mA
Output voltage (max.) 64V DC
Output voltage (min.) 36V DC
Power range 44.8 W (max)
Test mark CE
Weight 138g
Width 53mm
