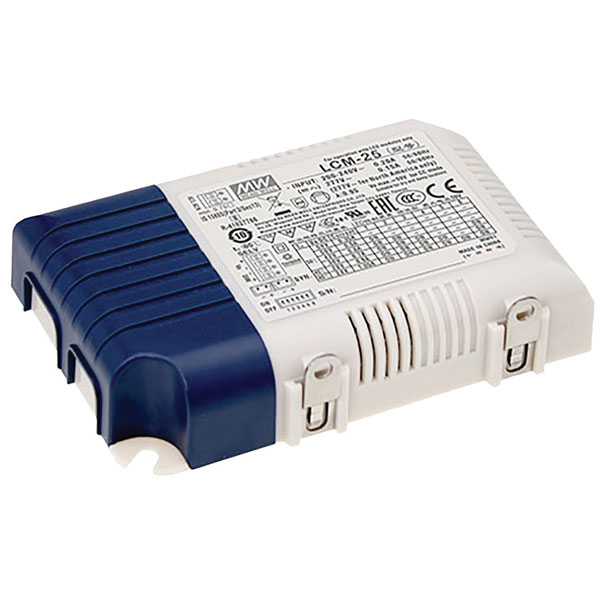

Mean Well LCM-60BLE LED driver 60.3W 1.4A 2-90V dimmable 1pc

Image Representative of Range

Mean Well LCM-60BLE LED driver 60.3W 1.4A 2-90V dimmable 1pc

Mean Well
Order Code:

05-0974

Brand: Mean Well MPN: LCM-60BLE EAN-13: 4021087058582
Qty Unit Price (Ex VAT)
1+ £80.90
5+ £77.94
10+ £75.16
25+ £69.41
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 12/12/2025

The Mean Well LCM-60BLE LED driver delivers a power output of 60.3 W and operates with a current rating of 1.4 A, suited for 2 - 90 V applications. This dimmable LED power supply unit is ideal for controlling LED strips and ensuring efficient lighting management. Typical applications include residential and commercial lighting installations requiring precise power control.
Type LED driver
Connection Plug & Clip
Dim (L x W x H) 123.5 x 81.5 x 23 mm
Height 23mm
LED driver features dimmable
Length 123.5mm
Max. output current 1.4A
Max. power 60.3W
Max. temperature +90°C
Min. temperature -20°C
Number of Outputs 1
Output current (max.) - rounded 1.4A
Output voltage (max.) 90V
Output voltage (min.) 2V
Power range 60.3 W (max)
Protection Class II
Test mark MM-Zeichen; SELV
Width 81.5mm
