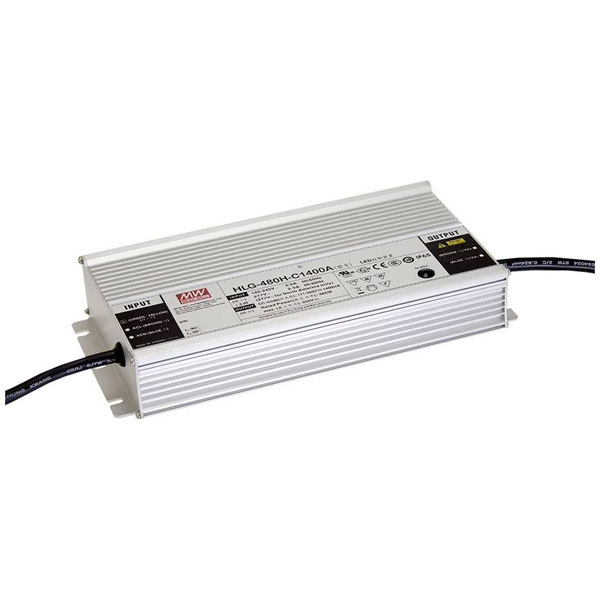

Mean Well HLG-480H-54AB LED driver 480.6W dimmable outdoor surge protected

Mean Well
Standard range
Order Code:

05-0859

Brand: Mean Well MPN: HLG-480H-54AB
Qty Unit Price (Ex VAT)
1+ £112.06
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
5 in stock, despatched in 4 working days

The Mean Well HLG-480H-54AB LED driver is a constant voltage and current unit providing 480.6 W power with a voltage range of 45.9 - 56.7 V DC and a current range of 4.4 - 8.9 A. It features a 3-in-1 dimmer, PFC circuit, surge protection, and is suitable for outdoor use. This LED driver is ideal for powering LED strips and other LED applications requiring dimm
Type LED driver
Connection Open end cable
Dim (L x W x H) 262 x 125 x 43.8 mm
Factory colour Metal
Height 43.8mm
IP rating IP65
Length 262mm
Max. output current 8.9A
Max. power 480.6W
Max. temperature +90°C
Min. temperature -40°C
Misc Attribute 1 Constant voltage
Misc Attribute 2 Pulsed
No. of inputs 1
No. of outputs 1
Output current (max.) - rounded 8.9A
Output current (min.) 4.4A
Output voltage (max.) 56.7V DC
Output voltage (min.) 45.9V DC
Power range 480.6 W (max)
Protection class I
Test mark SELV, UL, TÜV, CB, CE
Weight 2800g
Width 125mm
