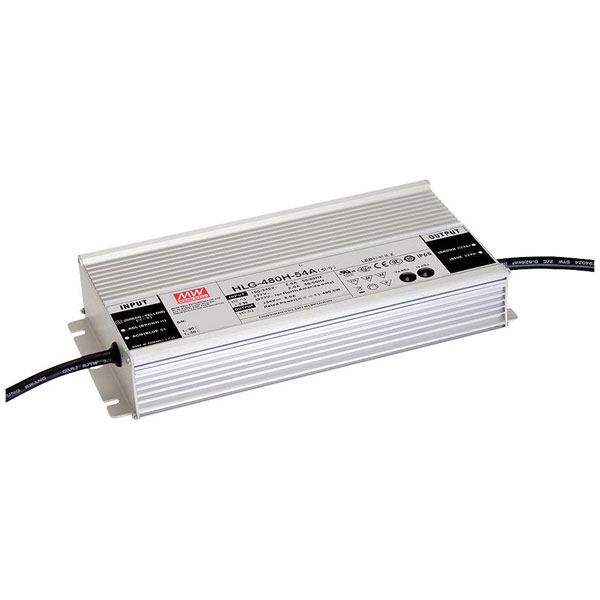

Mean Well HLG-480H-48AB LED driver 480 W dimmable outdoor surge protection

Image Representative of Range

Mean Well HLG-480H-48AB LED driver 480 W dimmable outdoor surge protection

Mean Well
Standard range
Order Code:

05-0858

Brand: Mean Well MPN: HLG-480H-48AB
Qty Unit Price (Ex VAT)
1+ £109.58
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
13 in stock, despatched in 4 working days

The Mean Well HLG-480H-48AB is a dimmable LED driver designed for outdoor use, providing constant voltage at 480 W with an adjustable current range of 5 - 10 A and a voltage range of 40.8 - 50.4 V DC. It includes a 3-in-1 dimming function, power factor correction (PFC) circuit, and surge protection. This LED driver is ideal for powering LED strips and other LED applications requiring robust and
Type LED driver
Connection Open end cable
Dim (L x W x H) 262 x 125 x 43.8 mm
Factory colour Metal
Height 43.8mm
IP rating IP65
Length 262mm
Max. output current 10A
Max. power 480W
Max. temperature +90°C
Min. temperature -40°C
Misc Attribute 1 Constant voltage
Misc Attribute 2 Pulsed
No. of inputs 1
No. of outputs 1
Output current (max.) - rounded 10A
Output current (min.) 5A
Output voltage (max.) 50.4V DC
Output voltage (min.) 40.8V DC
Power range 480 W (max)
Protection class I
Test mark SELV, UL, TÜV, CB, CE
Weight 2800g
Width 125mm
