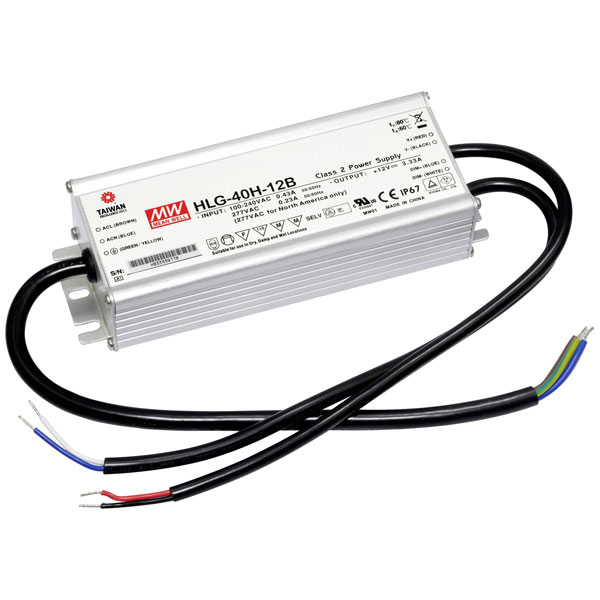

Mean Well HLG-40H-12B LED driver 39W 3.33A 7.2-12V DC dimmable IP67

The Mean Well HLG-40H-12B is an LED driver and transformer that provides constant voltage and current output, rated at 39 watts and 3.33 amperes with a voltage range of 7.2 to 12 volts DC. It features a power factor correction (PFC) circuit and surge protection, making it suitable for driving LED applications safely and efficiently. Typical applications include powering LED lighting systems where dimmable functionality is required for energy-saving and adaptable lighting environments.

Type	LED driver
Connection	Open end cable
Dim	(L x W x H) 230 x 100 x 50 mm
Height	50mm
Input voltage (max.)	305V AC
IP Rating	IP67
Length	230mm
Max. output current	3.33A
Max. power	39W
Min. input voltage	90V AC
Misc Attribute	Synchronised
Number of Inputs	1
Number of Outputs	1
Output current (max.) - rounded	3.33A
Output voltage (max.)	12V DC
Output voltage (min.)	7.2V DC
Power range	39 W (max)
Protection Class	I
Width	100mm
