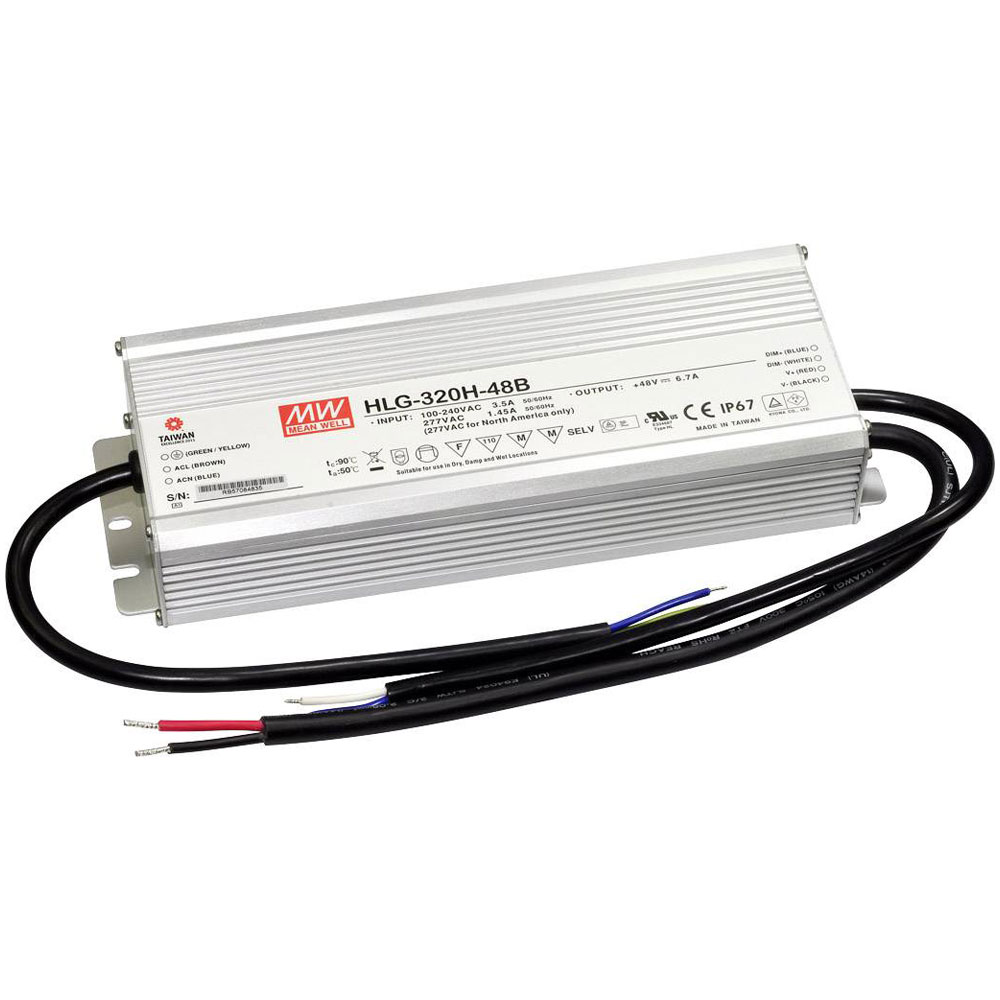

Mean Well Hlg-320H-48B LED Driver 321W 6.7A 24-48V DC Dimmable Surge Protected

Mean Well HLG-320H-48B is a high-performance LED driver designed for efficient power delivery in lighting systems. This driver operates at a constant voltage and current, providing up to 321 watts of power with a current output of 6.7 amperes and a variable voltage range between 24 to 48 volts DC. It features a dimmable function that enhances versatility in lighting applications, along with an integrated Power Factor Correction (PFC) circuit that optimises energy efficiency. Robust surge protection is included to safeguard connected devices against electrical spikes. This LED driver is suitable for a variety of engineering applications, including industrial lighting, architectural illumination, and horticultural lighting systems, where reliable and adjustable power supply is essential.

Type	LED driver
Output Voltage	24V DC
Output Current	321 W (max)
Input Voltage	305V AC
Connection	Open end cable
Dimensions	(L x W x H) 350 x 140 x 70 mm
Height	70mm
IP Rating	IP67
Length	350mm
Max. output current	6.7A
Max. power	321W
Min. input voltage	90V AC
No. of Inputs	1
No. of outputs	1
Protection Class	I
Weight	1897g
Width	140mm
