Mean Well HLG-240H-36A LED driver 241W 36V PFC surge protection

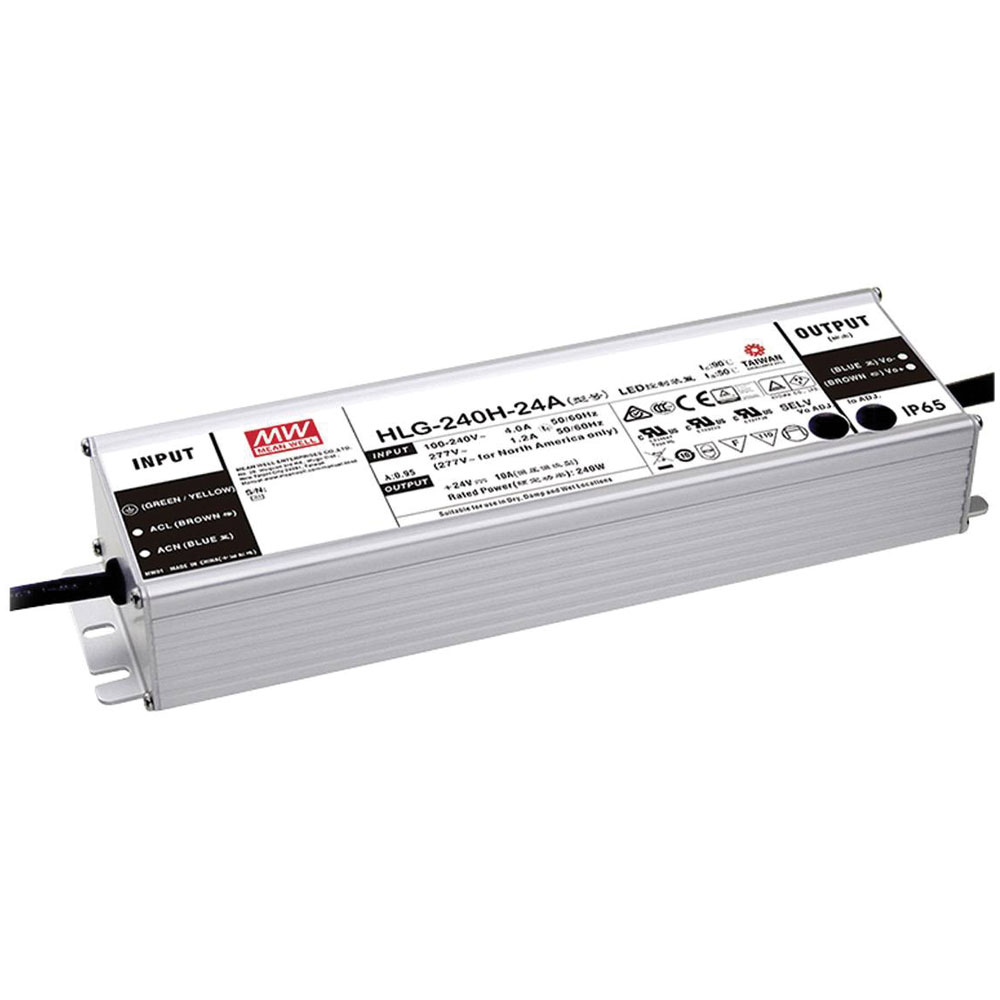

Image Representative of Range

Mean Well HLG-240H-36A LED driver 241W 36V PFC surge protection

Mean Well
Order Code:

05-0812

Brand: Mean Well MPN: HLG-240H-36A EAN-13: 4021087009881
Qty Unit Price (Ex VAT)
1+ £88.49
5+ £87.83
10+ £87.16
25+ £86.50
50+ £85.84
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
11 in stock, despatched in 4 working days

The Mean Well HLG-240H-36A LED driver outputs a constant voltage and current of 36 V DC at 6.7 A, with a power rating of 241 W. It features surge protection and an adjustable power output, making it suitable for LED strips and other LED lighting applications. This unit incorporates a power factor correction circuit for efficient energy use.
Type LED driver
Connection Open end cable
Dim (L x W x H) 244.20 x 68.00 x 38.80 mm
Height 38.80mm
Input voltage (max.) 305V AC
IP Rating IP65
Length 244.20mm
Max. output current 6.7A
Max. power 241W
Min. input voltage 90V AC
Misc Attribute Synchronised
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 6.7A
Output voltage (max.) 36V DC
Power range 241 W (max)
Width 68.00mm
