Mean Well HLG-150H-24AB LED driver dimmable outdoor surge protected

Mean Well
Order Code:

05-0787

Brand: Mean Well MPN: HLG-150H-24AB EAN-13: 4021087049528
Qty Was Unit Price (Ex VAT)
1+ £110.37 £69.53
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 12/12/2025

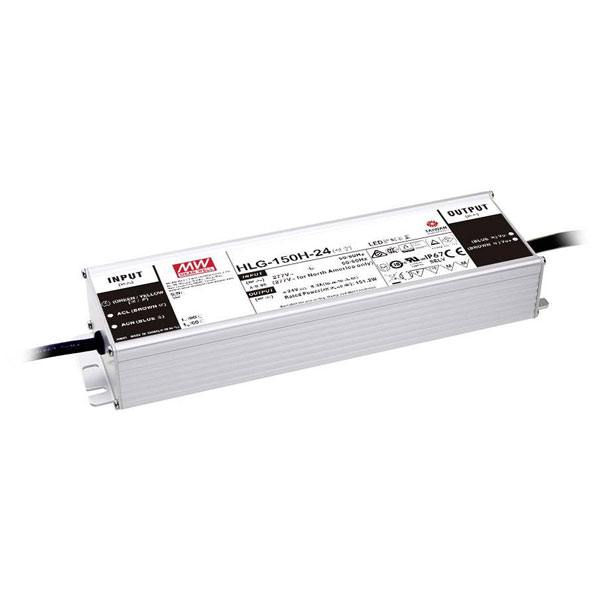

The Mean Well HLG-150H-24AB LED driver is a dimmable, constant voltage power supply with a wattage of 151.2 W, delivering 3.8 - 6.3 A at 22 - 27 V DC. It features a 3-in-1 dimmer, adjustable settings, PFC circuit, and is suitable for outdoor use on flammable surfaces with surge and overvoltage protection. This driver is commonly used for LED strips and furniture
Type LED driver
Connection Open end cable
Dim (L x W x H) 228 x 68 x 38.8 mm
Factory colour Metal
Height 38.8mm
IP Rating IP65
Length 228mm
Max. output current 6.3A
Max. power 151.2W
Max. temperature +90°C
Min. temperature -40°C
Misc Attribute 1 Constant voltage
Misc Attribute 2 Pulsed
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 6.3A
Output current (min.) 3.8A
Output voltage (max.) 27V DC
Output voltage (min.) 22V DC
Power range 151.2 W (max)
Protection Class I
Test mark MM, SELV, UL, TÜV, CB, CE
Width 68mm
