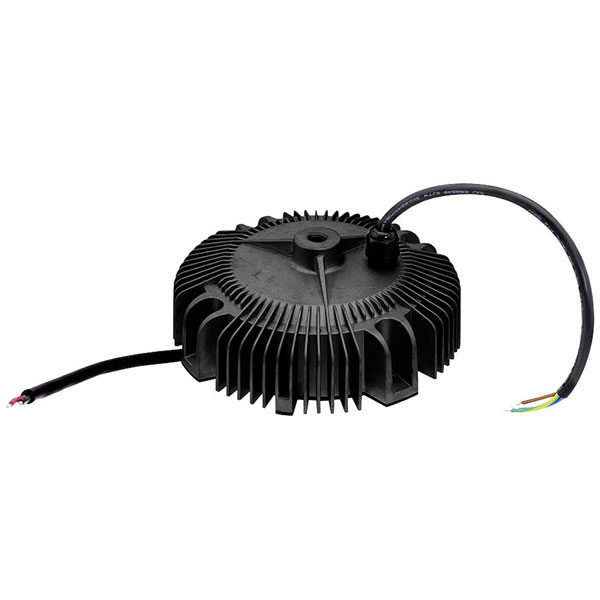

Mean Well Hbg-240-60A LED Driver 240W 4A 36-60V DC Dimmable Pfc Surge Protection

Mean Well HBG-240-60A LED driver, with manufacturer part number 1293542, is a robust power supply solution designed for LED lighting systems. It offers a constant voltage and constant current output, delivering up to 240 watts and 4 amperes across a voltage range of 36 to 60 volts DC. This dimmable driver features an integrated power factor correction (PFC) circuit and surge protection, ensuring reliable and efficient operation under varying load conditions. Its suitability for use with furniture installations, alongside its durability, makes it ideal for applications in architectural lighting, street lighting, and other professional lighting setups where smooth dimming control and system protection are critical. The driver is engineered to meet rigorous performance standards, making it a dependable choice for engineers seeking high-quality power management in LED systems.

Type	LED driver
Output Voltage	36V DC
Output Current	240 W (max)
Input Voltage	305V AC
Connection	Open end cable
Dimensions	(L x W x H) 69 x 162 x 162 mm
Height	162mm
IP Rating	IP65
Length	69mm
Max. output current	4A
Max. power	240W
Minimum Input Volage	90V AC
No. of Inputs	1
No. of outputs	1
Protection Class	I
Weight	2.1kg
Width	162mm
