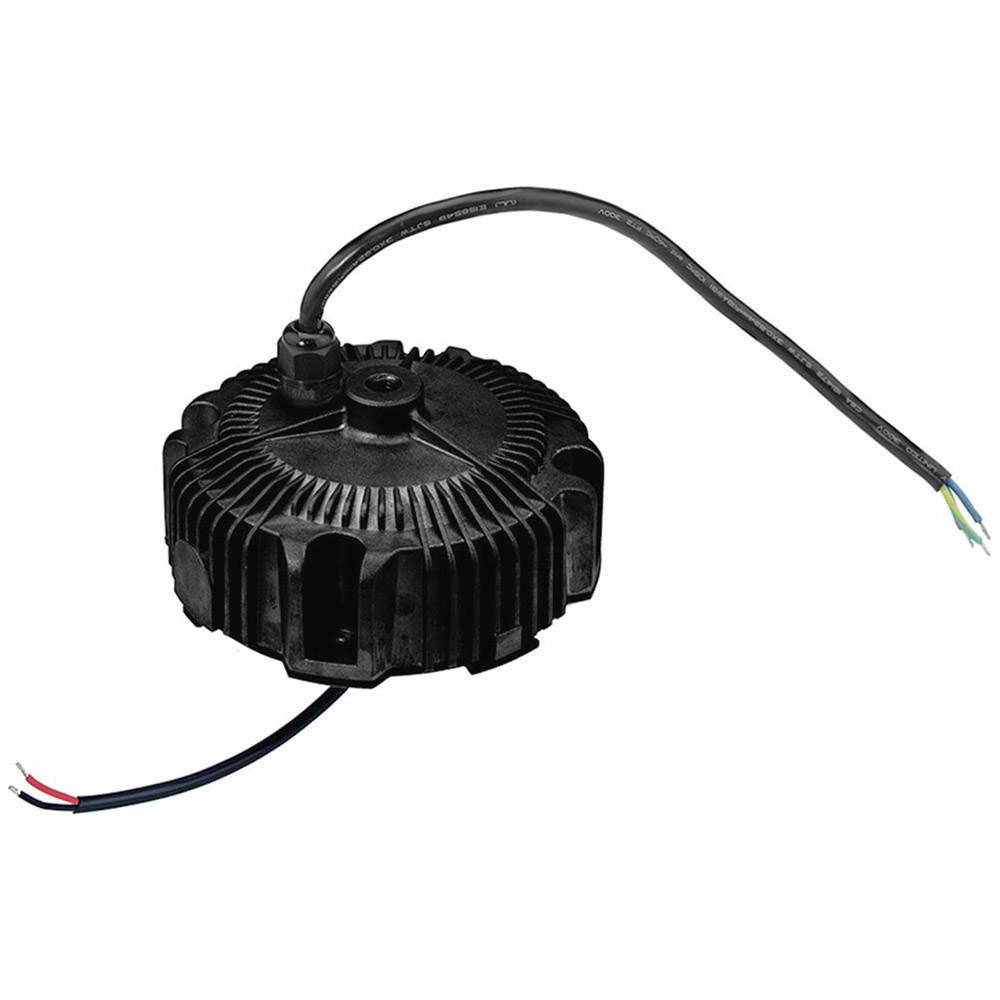

Mean Well HBG-200-48DA LED driver 48V 196.8W Dimmable DALI Outdoor

Mean Well
Order Code:

05-0735

Brand: Mean Well MPN: HBG-200-48DA EAN-13: 4021087049764
Qty Unit Price (Ex VAT)
1+ £70.04
5+ £64.65
10+ £61.42
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 14/12/2025

The Mean Well HBG-200-48DA is a dimmable LED driver featuring constant voltage and constant current outputs of 48 V DC and 4.1 A, with a power rating of 196.8 W. It offers surge protection, overvoltage safeguards, and a PFC circuit, suitable for outdoor applications. Common uses include powering LED strips and lighting setups that require DALI dimming control.
Type LED driver
Connection Open end cable
Dim (L x W x H) 132 x 132 x 66.5 mm
Factory colour Black
Height 66.5mm
Inputs 1
IP Rating IP67
Length 132mm
Max. output current 4.1A
Max. power 196.8W
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute Pulsed
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 4.1A
Output voltage (max.) 48V DC
Power range 196.8 W (max)
Protection Class I
Test mark CE, CB, SELV, UL, ENEC
Width 132mm
