Mean Well HBG-200-48 LED driver 48V 196.8W PFC surge protection

Mean Well
Order Code:

05-0733

Brand: Mean Well MPN: HBG-200-48 EAN-13: 4021087049771
Qty Was Unit Price (Ex VAT)
1+ £68.92 £67.76
5+ £63.63 £62.56
10+ £60.45 £59.43
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 14/12/2025

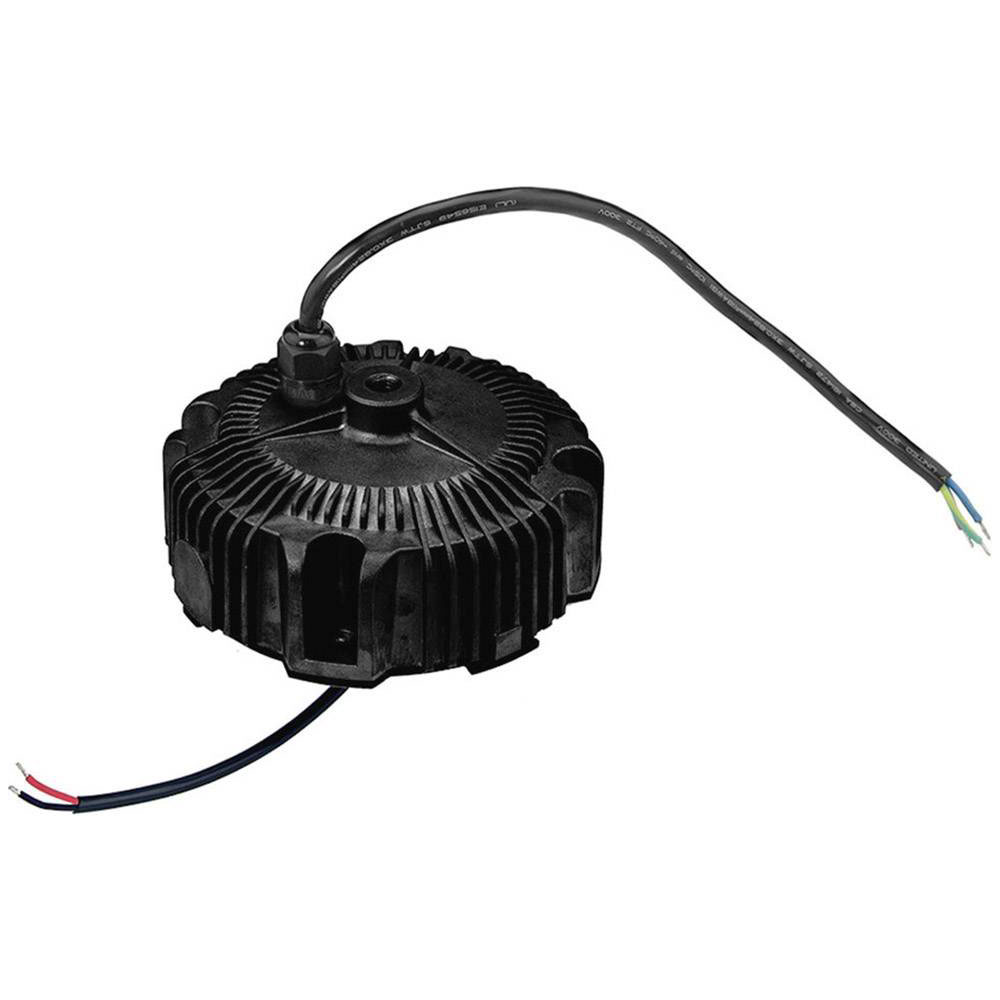

Manufactured by Mean Well, the HBG-200-48 LED driver provides a constant voltage of 48 V DC and a constant current of 4.1 A, delivering a power output of 196.8 W. Designed for outdoor use, it features a PFC circuit, surge protection, and overvoltage protection, making it ideal for powering LED strips and other LED applications. This reliable unit is not dimmable and includes an open-end cable for easy installation in various lighting projects
Type LED driver
Connection Open end cable
Dim (L x W x H) 132 x 132 x 66.5 mm
Factory colour Black
Height 66.5mm
Inputs 1
IP Rating IP67
Length 132mm
Max. output current 4.1A
Max. power 196.8W
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute Pulsed
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 4.1A
Output voltage (max.) 48V DC
Power range 196.8 W (max)
Protection Class I
Test mark CE, CB, SELV, UL, ENEC
Width 132mm
