Mean Well HBG-160-48DA LED driver 48V 158.4W Dimmable Outdoor DALI

Mean Well
Order Code:

05-0729

Brand: Mean Well MPN: HBG-160-48DA EAN-13: 4021087049832
Qty Unit Price (Ex VAT)
1+ £64.20
5+ £59.27
10+ £56.30
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 14/12/2025

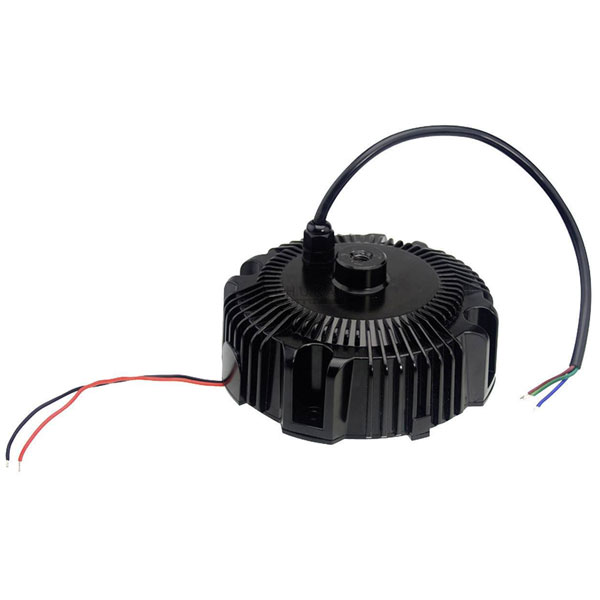

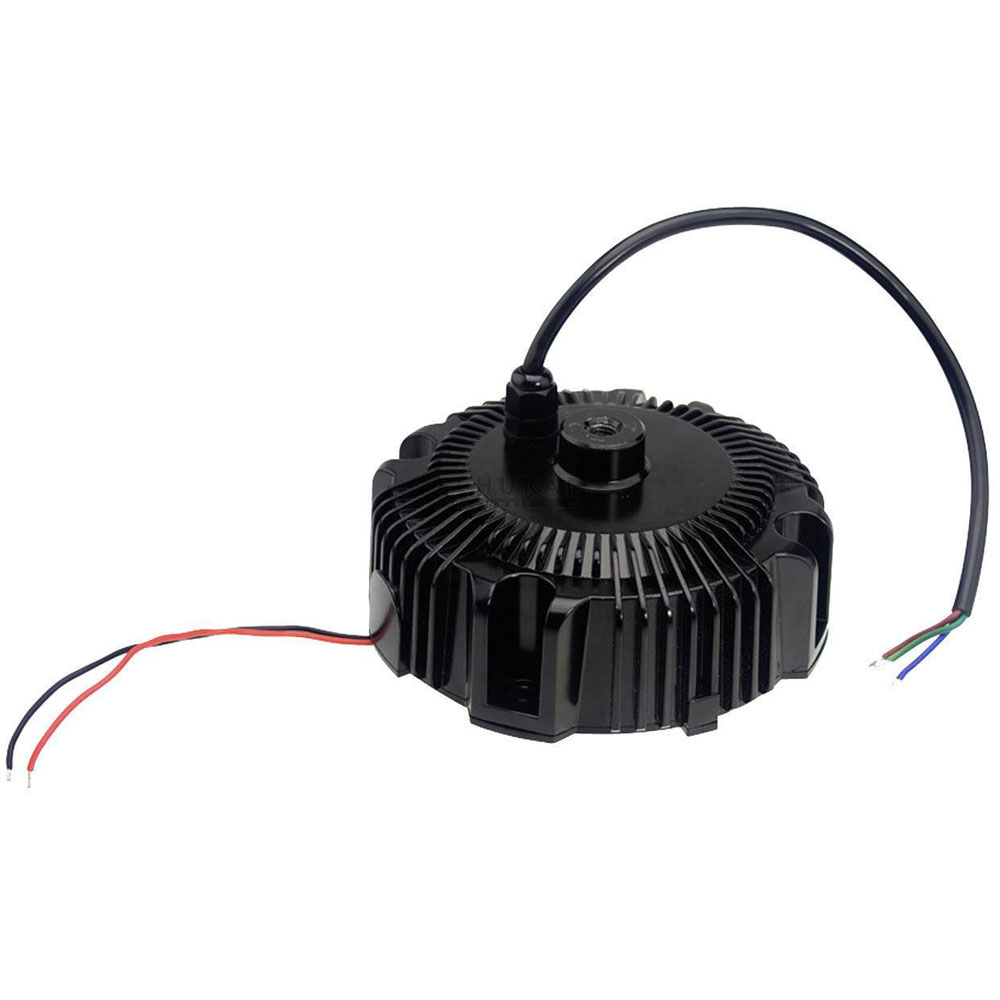

The Mean Well HBG-160-48DA LED driver is a 158.4 W, 3.3 A, 48 V DC dimmable power supply. It features DALI compatibility, a PFC circuit, surge protection, and overvoltage protection, making it ideal for outdoor LED lighting applications. This LED driver is perfect for use with LED strips and other LED lighting installations that require reliable power management.
Type LED driver
Connection Open end cable
Dim (L x W x H) 132 x 132 x 66.5 mm
Factory colour Black
Height 66.5mm
Inputs 1
IP Rating IP67
Length 132mm
Max. output current 3.3A
Max. power 158.4W
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute Pulsed
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 3.3A
Output voltage (max.) 48V DC
Power range 158.4 W (max)
Protection Class I
Test mark CE, CB, SELV, UL, ENEC
Width 132mm
