Mean Well EPP-150-48 SMPSU 48V DC 2.1A 100.8W open frame compact supply

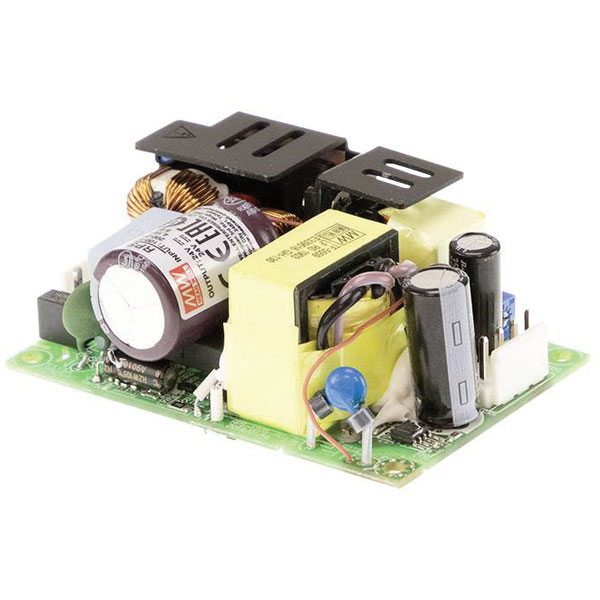

Image Representative of Range

Mean Well EPP-150-48 SMPSU 48V DC 2.1A 100.8W open frame compact supply

Mean Well
Standard range
Order Code:

05-0537

Brand: Mean Well MPN: EPP-150-48
Qty Unit Price (Ex VAT)
1+ £51.25
5+ £48.43
10+ £46.18
25+ £43.56
50+ £41.01
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
15 in stock, despatched in 4 working days

The Mean Well EPP-150-48 is an open-frame switching power supply delivering 48 V DC at 2.1 A with a power output of 100.8 W. This PCB-mounted unit is ideal for applications requiring reliable power supply, such as industrial control systems and telecommunications equipment. Typical features include its compact design and compatibility with pin strip for nylon crimp connectors.
Type SMPSU
Connection Pin strip for nylon crimp connectors
Dim (L x W x H) 101.60 x 50.80 x 29.00 mm
Height 29.00mm
Input voltage (max.) 264V AC
Length 101.60mm
Max. output current 2.1A
Min. input voltage 90V AC
Misc Attribute 1 Synchronised
Misc Attribute 2 EPP-150-48
Misc Attribute 3 open
No. of inputs 1
No. of outputs 1
Output current (details) 2.1 A
Output current (max.) - rounded 2.1A
Output voltage 48 V/DC
Output voltage (max.) 48V DC
Power 100.8W
Weight 200.00g
Width 50.80mm
