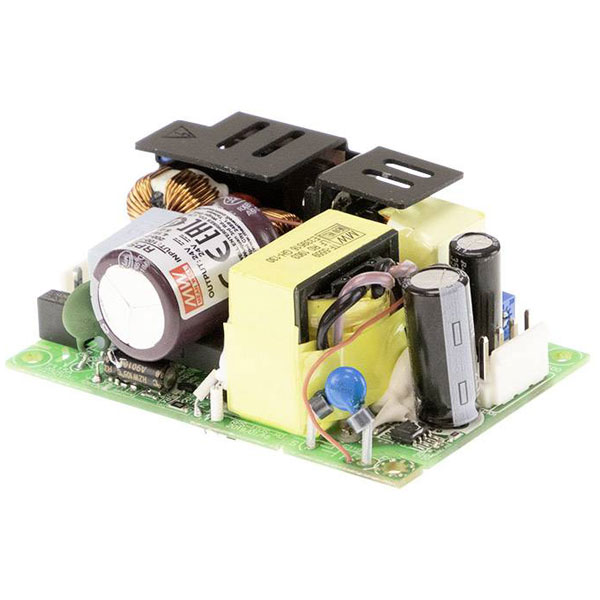

Mean Well EPP-120S-15 Power Supply 15V DC 7.6A 114W 1 pc

The Mean Well EPP-120S-15 is a printed circuit board mounted switch-mode power supply unit designed for efficient power conversion. With an output of 15 V DC and a current rating of 7.6 A, it delivers up to 114 W, making it suitable for various electronic and industrial applications. Its compact design with solder lugs facilitates easy integration into circuit boards.

Type	SMPSU
Nominal value output current 1	7.6A
Number of Outputs	1
Power Rating	114W
Depth	76.2mm
Dimensions (L x W x H)	76.2 x 50.8 x 28mm
Height	28mm
Max. output current 1	7.6A
Maximum Temperature	+85°C
Min. temperature	-30°C
Misc Attribute 2	Pulsed
Misc Attribute 3	open
MTBF	470000h
Nominal value output voltage 1 [DC]	15V
Number of Inputs	1
PFC	Yes
Type of electric connection	Pin strip for nylon crimp connectors
Weight	130g
Width	50.8mm
