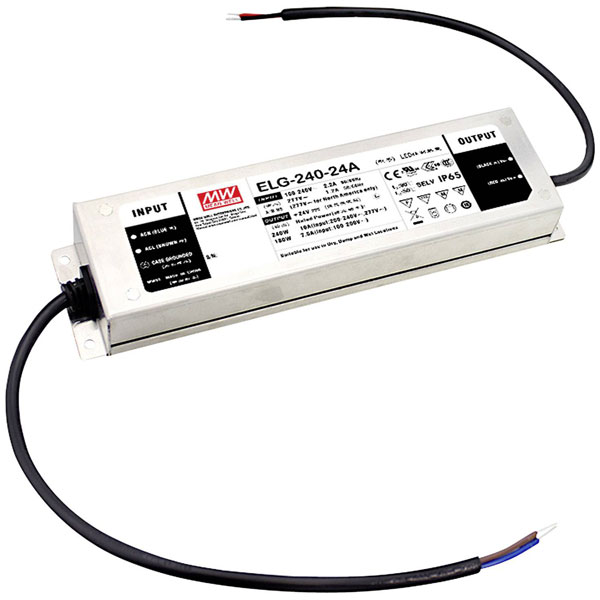

Mean Well ELG-240-24B-3Y LED driver 240W 10A 12-24V DC IP67 dimmable

Mean Well
Order Code:

05-0486

Brand: Mean Well MPN: ELG-240-24B-3Y EAN-13: 4021087037938
Qty Unit Price (Ex VAT)
1+ £68.52
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
3 in stock, despatched in 4 working days

The Mean Well ELG-240-24B-3Y LED driver provides constant voltage and constant current with a power rating of 240 W and a current of 10 A, operating within 12 - 24 V DC. It features a 3-in-1 dimmer, surge protection, overvoltage protection, and includes a PFC circuit, making it suitable for outdoor applications and installation on flammable surfaces. This robust LED transformer is ideal for driving LED strips and installations requiring reliable
Type LED transformer
Connection Open end cable
Dim (L x W x H) 244 x 71 x 37.5 mm
Factory colour Metal
Height 37.5mm
Input voltage (max.) 305V AC
IP Rating IP67
Length 244mm
Max. output current 10A
Max. power 240W
Max. temperature 90°C
Min. input voltage 100V AC
Min. temperature -40°C
Misc Attribute Synchronised
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 10A
Output voltage (max.) 24V DC
Output voltage (min.) 12V DC
Power (min.) 180W
Power range 180 up to 240 W
Protection Class I
Width 71mm
