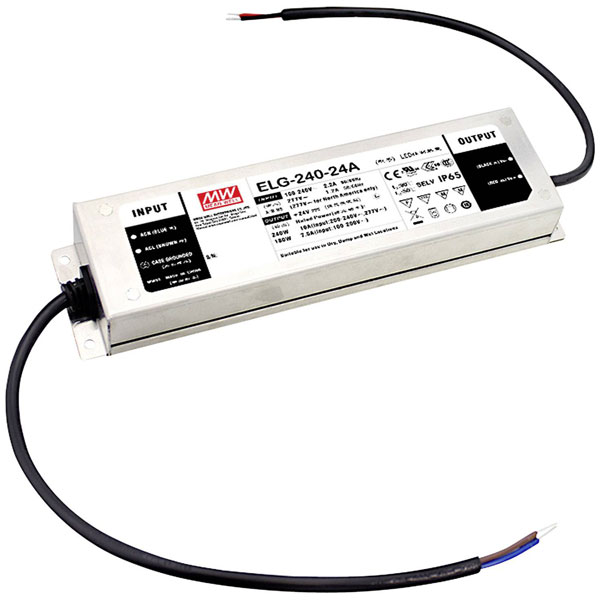

Mean Well ELG-240-24A-3Y LED driver 240W IP65 adjustable voltage and current

Mean Well
Order Code:

05-0484

Brand: Mean Well MPN: ELG-240-24A-3Y EAN-13: 4021087037945
Qty Unit Price (Ex VAT)
1+ £40.52
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 12/12/2025

The Mean Well ELG-240-24A-3Y LED transformer is a constant voltage and current LED driver with 240 W power output, offering an adjustable DC range of 21.6 - 26.4 V and 5 - 10 A. Key features include suitability for flammable surfaces, surge protection, and overvoltage protection, backed by a PFC circuit. Ideal for powering LED strips and other LED applications, this reliable power supply ensures efficient and safe performance.
Type LED transformer
Connection Open end cable
Dim (L x W x H) 244 x 71 x 37.5 mm
Factory colour Metal
Height 37.5mm
Input voltage (max.) 305V AC
IP Rating IP65
Length 244mm
Max. output current 10A
Max. power 240W
Max. temperature 90°C
Min. input voltage 100V AC
Min. temperature -40°C
Misc Attribute Synchronised
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 10A
Output current (min.) 5A
Output voltage (max.) 26.4V DC
Output voltage (min.) 21.6V DC
Power (min.) 180W
Power range 180 up to 240 W
Protection Class I
Width 71mm
