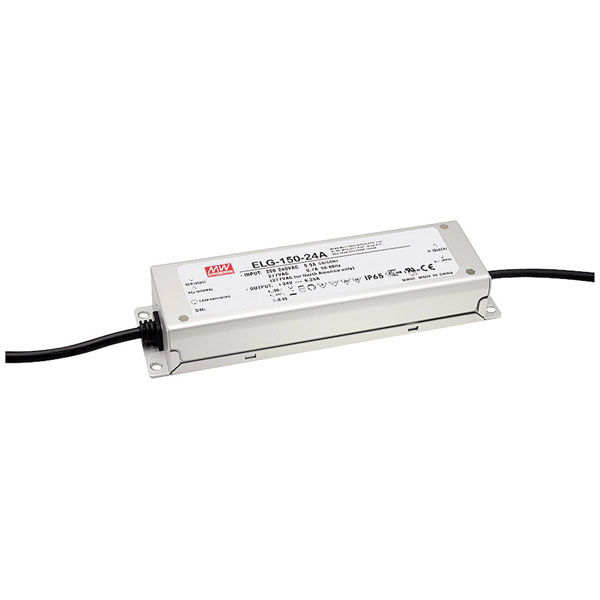

Mean Well ELG-150-24B-3Y LED driver 150W IP67 dimmable 24V outdoor

Mean Well
Order Code:

05-0457

Brand: Mean Well MPN: ELG-150-24B-3Y EAN-13: 4021087038430
Qty Unit Price (Ex VAT)
1+ £51.94
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
76 in stock, despatched in 4 working days

The Mean Well ELG-150-24B-3Y LED driver provides a constant voltage and constant current output, rated at 150 W and 6.25 A with a voltage range of 12 - 24 V DC, and includes a 3-in-1 dimmer. It features surge protection, overvoltage protection, a power factor correction (PFC) circuit, and is suitable for installation on flammable surfaces, making it ideal for outdoor and demanding environments. Typical applications
Type LED transformer
Connection Open end cable
Dim (L x W x H) 219 x 63 x 35.5 mm
Factory colour Metal
Height 35.5mm
Input voltage (max.) 305V AC
IP Rating IP67
Length 219mm
Max. output current 6.25A
Max. power 150W
Max. temperature 90°C
Min. input voltage 100V AC
Min. temperature -40°C
Misc Attribute Synchronised
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 6.25A
Output voltage (max.) 24V DC
Output voltage (min.) 12V DC
Power (min.) 105W
Power range 105 up to 150 W
Protection Class I
Width 63mm
