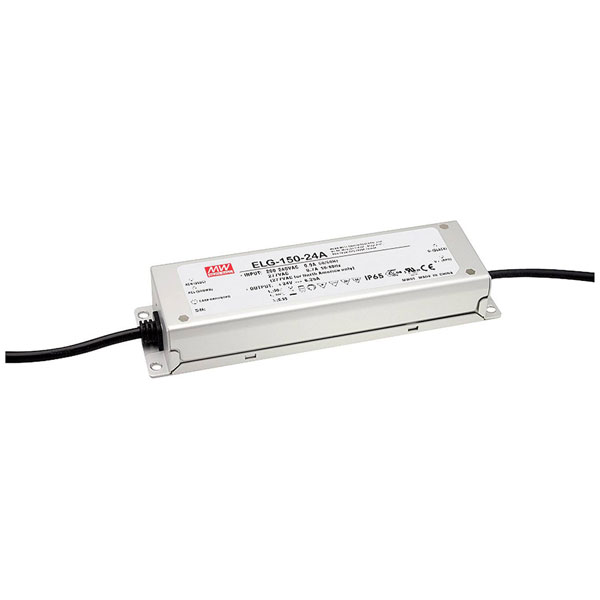

Mean Well ELG-150-24-3Y LED driver 150W 24V DC IP67 surge protection

The Mean Well ELG-150-24-3Y LED driver provides a constant voltage and current output with a power rating of 150 W, 6.25 A at 24 V DC, tailored for non-dimmable LED applications. It features surge protection, overvoltage safeguards, and a PFC circuit, making it reliable and safe for flammable surfaces and outdoor use. Typically applied in LED strip lighting and outdoor illumination projects, this unit ensures efficient energy conversion for stable LED operation

Type	LED transformer
Connection	Open end cable
Dim	(L x W x H) 219 x 63 x 35.5 mm
Factory colour	Metal
Height	35.5mm
Input voltage (max.)	305V AC
IP Rating	IP67
Length	219mm
Max. output current	6.25A
Max. power	150W
Max. temperature	90°C
Min. input voltage	100V AC
Min. temperature	-40°C
Misc Attribute	Synchronised
Number of Inputs	1
Number of Outputs	1
Output current (max.) - rounded	6.25A
Output voltage (max.)	24V DC
Power range	150 W (max)
Protection Class	I
Width	63mm
