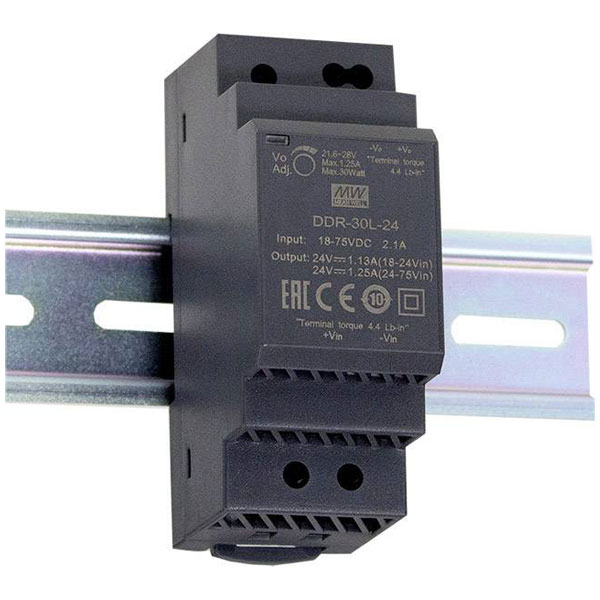

Mean Well DDR-30L-24 Rail mounted DC/DC converter 24V 1.25A 30W

Mean Well
Standard range
Order Code:

05-0302

Brand: Mean Well MPN: DDR-30L-24
Qty Unit Price (Ex VAT)
1+ £28.80
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
41 in stock, despatched in 4 working days

The Mean Well DDR-30L-24 is a rail-mounted DC/DC converter designed for industrial applications. It provides a 24 V DC output with a current rating of 1.25 A and a total power of 30 W, suitable for powering industrial equipment. The module is engineered for installation on a DIN rail and offers a reliable solution for converting DC voltages in automation systems.
Type Rail mounted DC/DC converter (DIN)
Connection Clamp
Dim (L x W x H) 35 x 54.5 x 90 mm
Efficiency 91%
Height 90mm
Input Voltage 18-75V DC
Input voltage (max.) 75V DC
Length 35mm
Manufacturer part # DDR-30L-24
Max. output current 1.25A
Min. input voltage 18V DC
Misc Attribute DDR-30L-24
MTBF 483300h
No. of outputs 1
Nominal input voltage 48 V/DC
Operating temperature (max.) +85°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 1.25A
Output type (power supply units) Adjustable
Output voltage 24V DC
Output voltage (max.) 28V DC
Output voltage (min.) 21.6V DC
Output voltage (nominal) 24V DC
Power 30W
Weight 120g
Width 54.5mm
