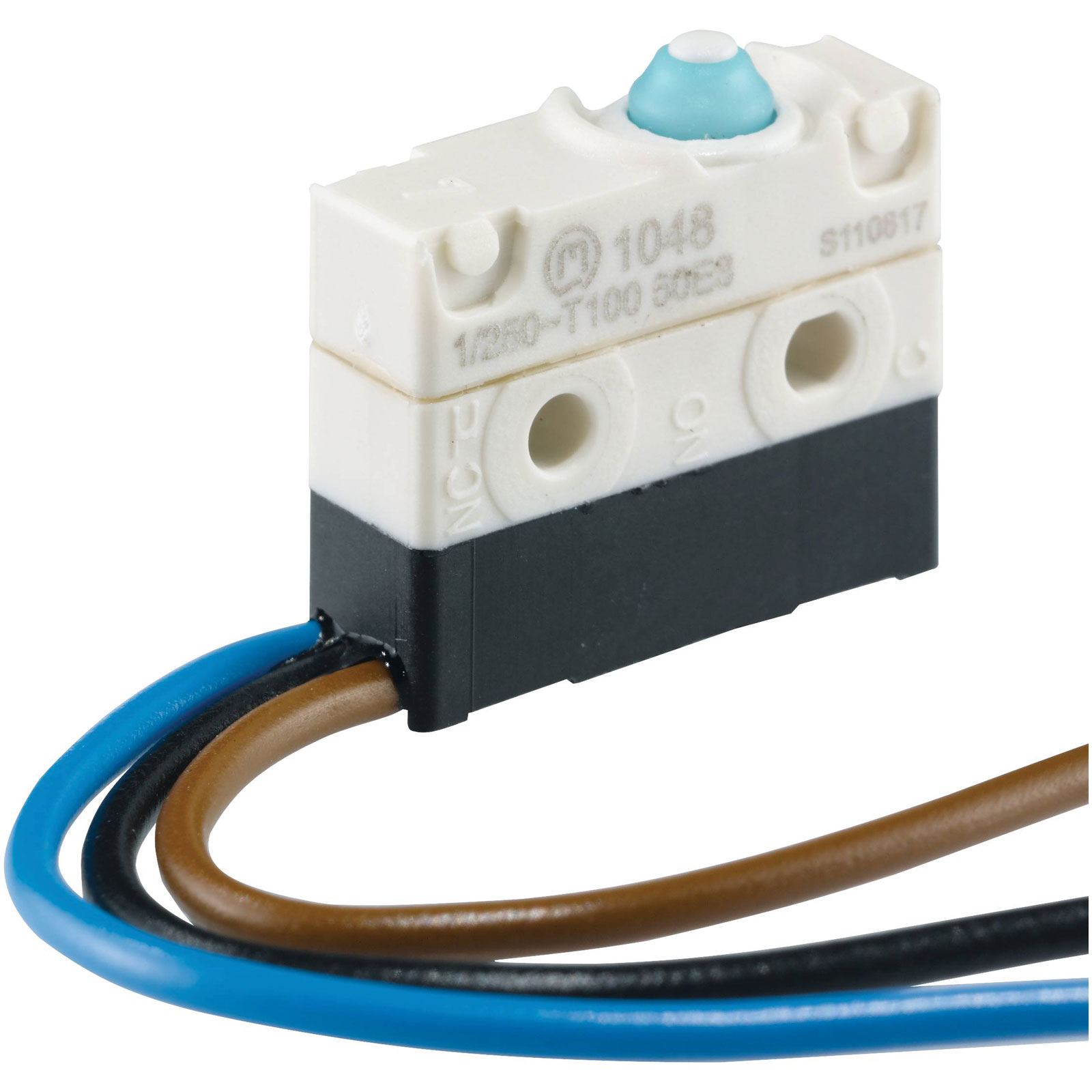

Marquardt 1048.6113 Snap-Action Switch 250V AC 10A IP67 Momentary

The Marquardt 1048.6113 snap-action switch is a miniature switch designed for both momentary and momentary on/(on) operations. It has a 250 V AC rating and can handle up to 10 A, while its IP67 rating offers protection against dust and water. This micro switch is ideal for industrial and consumer applications requiring reliable and quick action control.

Type	Snap-action switch
Contact Configuration	SPDT
Switch Function	momentary/momentary
Current Rating (Amps)	10A
Voltage Rating - AC	250 VAC
Actuator Type	Button
Connection	Open end cable
Contact Material	Gold plated
Contact Type	1 change-over
Dim	(L x W x H) 19.8 x 6.4 x 10 mm
Height	10mm
IP Rating	IP67
Length	19.8mm
Maximum Temperature	+105°C
Min. temperature	-60°C
Switch position	1 x On/(On)
Switching Voltage	250V AC
Width	6.4mm
