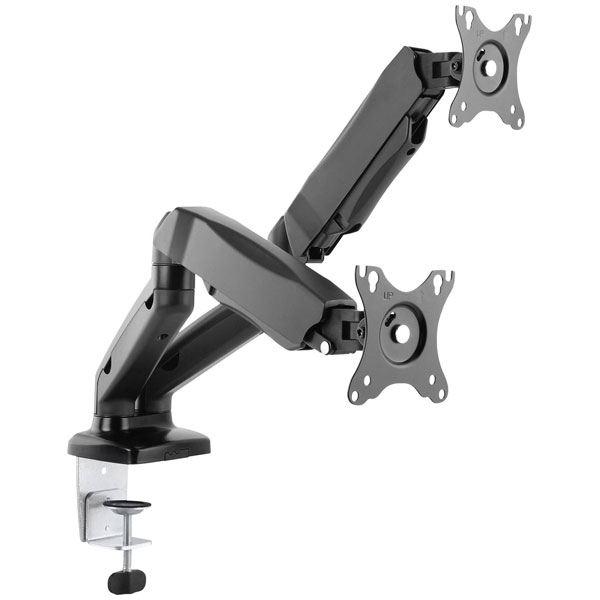

Manhattan 462501 is a robust monitor desk mount designed to support displays ranging from 17 inches to 32 inches, or 43.2 cm to 81.3 cm, in a sleek black finish. This height-adjustable and tiltable device enhances ergonomic comfort by facilitating portrait and landscape orientation as well as swivelling capabilities to suit various viewing preferences. Its versatile adjustability makes it ideal for engineering applications such as CAD workstations, control rooms, or any professional setting requiring precise monitor positioning for optimal line-of-sight efficiency. The desk mount's solid construction ensures reliable support while allowing for easy adjustments, thus enhancing productivity by reducing strain and enabling a flexible, organised workspace.
| Type |
Monitor desk mount |
| Add-on displays |
2 |
| Angle of rotation |
360° |
| Clamp mount desk thickness (max) |
1 cm |
| Colour |
Black |
| Compliance certificates |
RoHS |
| Depth |
942mm |
| Desk thickness (max) |
8.3 cm |
| Desk thickness (min) |
1 cm |
| Dimensions |
(W x H x D) 112 x 570 x 942 mm |
| Extension arm (max) |
45 cm |
| Grommet mount desk thickness (max) |
8.3 cm |
| Height |
570mm |
| Height adjustment |
Yes |
| Height adjustment range |
158 - 406 mm |
| Height adjustment type |
Gas spring |
| Housing Material |
Aluminium |
| Manual |
Yes |
| Master (outer) case gross weight |
18.5 kg |
| Master (outer) case height |
320mm |
| Master (outer) case length |
690mm |
| Master (outer) case width |
364mm |
| Material (details) |
Aluminium |
| Max. load Capacity |
9kg |
| Max. table Thickness |
83mm |
| Maximum screen size |
81.3 cm (32) |
| Maximum VESA mount |
100 x 100 mm |
| Maximum weight capacity |
18 kg |
| Maximum weight capacity (per display) |
9 kg |
| Minimum screen size |
43.2 cm (17) |
| Minimum VESA mount |
75 x 75 mm |
| Mounting |
Clamp/Bolt-through |
| Mounting kit |
Yes |
| Mounting Type |
Desk |
| Number of displays supported |
2 |
| Package depth |
172mm |
| Package height |
672mm |
| Package type |
Box |
| Package weight |
4.36 kg |
| Package width |
150mm |
| Packaging content |
Aluminum Gas Spring Dual Monitor Desk Mount\nInstallation hardware with instructions |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| Pneumatic technology |
Yes |
| Product colour |
Black |
| Products per master (outer) case |
4 pc(s) |
| Rotation |
360° |
| Suitable For |
43,2 cm (17") - 81,3 cm (32") |
| Sustainability compliance |
Yes |
| Swivel angle |
180° |
| Swivel Range (left) |
90° |
| Swivel Range (right) |
90° |
| Swivelling |
Yes |
| Tilt Range (bottom) |
45° |
| Tilt Range (top) |
90° |
| Weight |
3820g |
| Width |
112mm |
