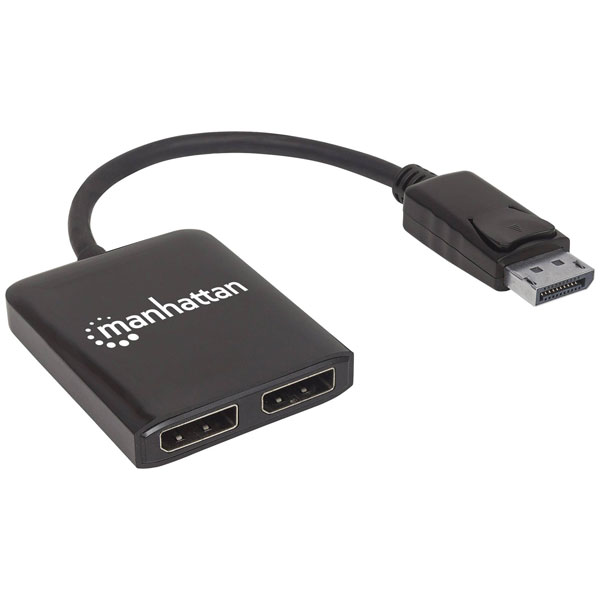

Manhattan 207768 splitter 2 ports DisplayPort 3810x2160p AV HDMI switches

Manhattan 207768, also known as product number 1888255, is a splitter designed to efficiently manage video signals. This device supports a resolution of up to 3810x2160p, making it suitable for high-definition displays and advanced visual applications, particularly in professional audio-visual setups or engineering environments. With two DisplayPort outputs, this splitter allows for simultaneous dual-display output while maintaining clarity and performance across both displays. It is commonly utilised in environments where high-quality visual output is necessary, such as digital signage systems, control rooms, and video conferencing settings, ensuring seamless integration and operation in sophisticated engineering applications.

Type	DisplayPort splitter
Connector	Gold
Colour	Black
3D	Yes
AC input voltage	5 V
Cables included	Micro-USB
Certification	CTS 1.4a\nCE\nFCC\nRoHS2
Compliance certificates	RoHS
DC-in jack	Yes
Depth	250mm
Harmonized System (HS) code	85176990
HDCP	Yes
Height	11mm
Housing Material	Plastic
Input Current	2 A
InterFaces (Input)	DisplayPort
InterFaces (output)	DisplayPort
Maximum resolution	3840 x 2160 pixels
No. of Inputs	1
No. of outputs	2
Operating relative humidity (H-H)	0 - 96%
Operating temperature (T-T)	0 - 40 °C
Power Supply Type	via USB
Resolution (max.)	3810 x 2160 p
Storage temperature (T-T)	-20 - 60 °C
Supported audio file formats	DTS
Supported monitors	2
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
USB powered	Yes
Video out	2x DisplayPort
Video port type	DisplayPort
Video ports quantity	2
Weight	50g
Width	50mm
Windows operating systems supported	Yes
