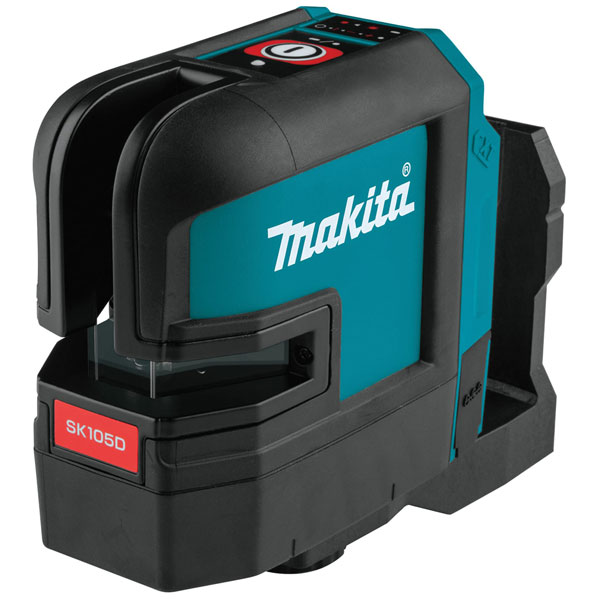

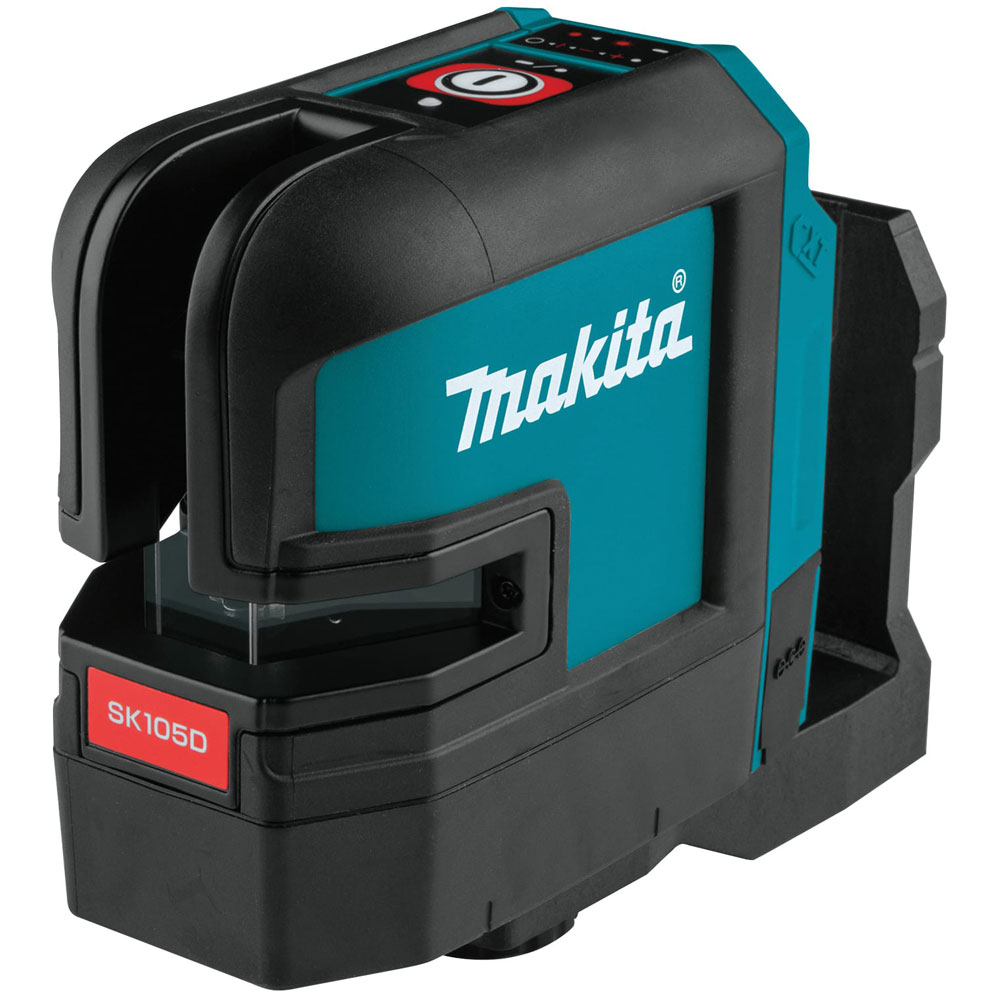

The Makita SK105D CXT 12Vmax Cross Line Laser has 2 brightness modes: High and Eco, that can be selected depending on work conditions. Full reference line coverage is achieved from vertical and horizontal crosslines that spans past 90° to provide 180° horizontal and 160° vertical lines making it the ideal cordless solution to level, align and plumb. An LED light blinks when out of level, it also features a pendulum lock and has pulse power for receiver.
Its DC Jack allows compatibility with LXT batteries if used with a USB adaptor.
Comes as a Bare Unit, No Battery or Charger.
Supplied with: 1 x Laser Target Plate, 1 x Magnetic L-Adaptor, 1 x CD with User Manual, 1 x Quick Reference Guide, 1 x Safety Instructions and 1 x Carry Bag.
Specification
Laser Colour: Red
Beam Direction/Fan Angle; Vertical >160°, Horizontal >180°
Range: 25m
Range with Receiver: 80m
Self Levelling Accuracy: ±0.3mm/m
Self Levelling Range: ± 4°
Tripod Thread: 1/4in
Weight: 0.67kg
| Type |
Cross line laser |
| Accuracy |
± 0.3 mm/m |
| Accuracy (+/-) |
0.30mm/m |
| Auto-adjustment Range (+/-) |
4° |
| Average Accuracy (2s) of Length Measurement |
± 3 mm / 10m |
| Battery Chemistry (Ni-Cd / Ni-MH / Li-ion) |
Li-ion |
| Continuous Use 12V Max / 1.5 Ah Battery |
15 h |
| Continuous Use 12V Max / 4.0 Ah Battery |
40 h |
| Continuous Use 12Vmax / 2.0 Ah Battery |
20 h |
| International Protection Class (IP) |
IP54 |
| Laser Class |
2 |
| Laser Colour |
Red |
| Levelling Range |
±4 º |
| Measuring Range |
25 (80)m |
| Nominal Battery Voltage |
12 V |
| Power Supply |
Bare |
| Product Dimensions (L x W x H): |
138 x 64 x 102 mm |
| Product net weight |
0.46kg |
| Range (max.) |
25m |
| Spindle Thread |
1/4", 5/8" |
| Tool weight with battery |
0.67 - 0.84kg |
| Usage temperature |
-10 - 50°C |
