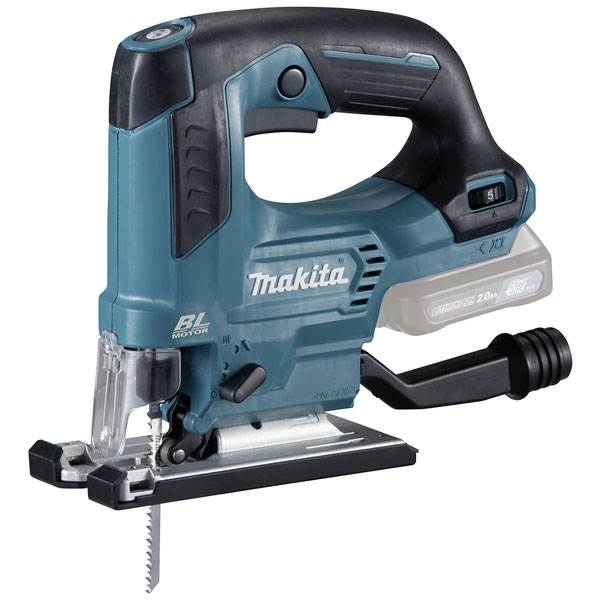

Makita JV103DZ Cordless jigsaw 10.8V 3-stage pendulum 90mm wood cut

Makita's JV103DZ is a cordless pendulum action jigsaw with a 10.8 V rating, designed for precise and versatile cutting tasks. This powerful jigsaw is ideal for woodworking, metalworking, and general construction cutting applications. The absence of a cord enhances mobility, allowing for use in areas without immediate access to power outlets.

Voltage	10.8V
Type	Cordless pendulum action jigsaw
Strokes Per Minute	3000 /min
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion)	Li-ion
Capacity Aluminium	20mm
Cutting depth (max.) (wood)	90mm
Dim	(L x W x H) 237 x 76 x 206 mm
Height	206mm
Length	237mm
Length of Stroke	23mm
Max. Bevel Range (Left)	0 - 45 º
Max. Bevel Range (Right)	0 - 45 º
Max. Cutting Capacity in Steel (90°)	10mm
Max. Cutting Capacity in Wood (90°)	90mm
Noise Uncertainty (K Factor)	3 dB(A)
Nominal Battery Voltage	12 V
Product Dimensions (L x W x H):	237 x 76 x 206 mm
Sound Power Level (LWA)	96 dB(A)
Sound Pressure Level (LpA)	88 dB(A)
Strokes per Minute (SPM)	800 - 3000 min?¹
Tool weight with battery	1.9 - 2.0kg
Upstroke (max.)	23mm
Vacuum cleaner connection Ø in / out	23 / 28mm
Vibration Level, Cutting Boards	8,5 m/s²
Vibration Level, Cutting Sheet Metal	6,0 m/s²
Vibration Uncertainty (K Factor), Cutting Boards	1,5 m/s²
Vibration Uncertainty (K Factor), Cutting Sheet Metal	1,5 m/s²
Weight	2kg
Weight, information	incl. rechargeable battery
Width	76mm
