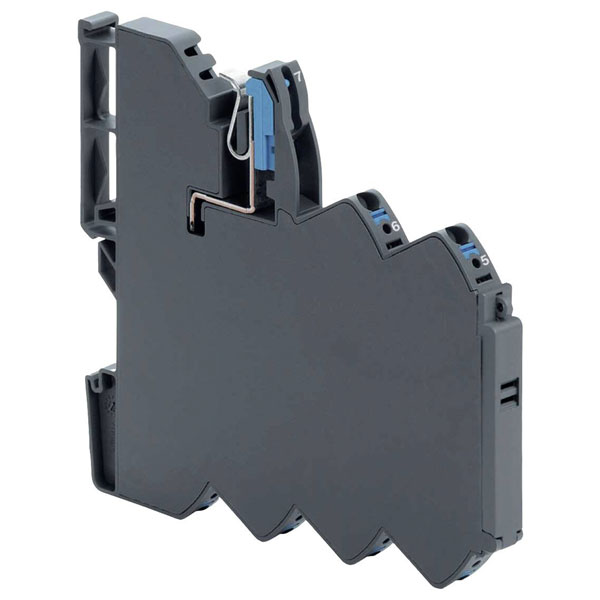

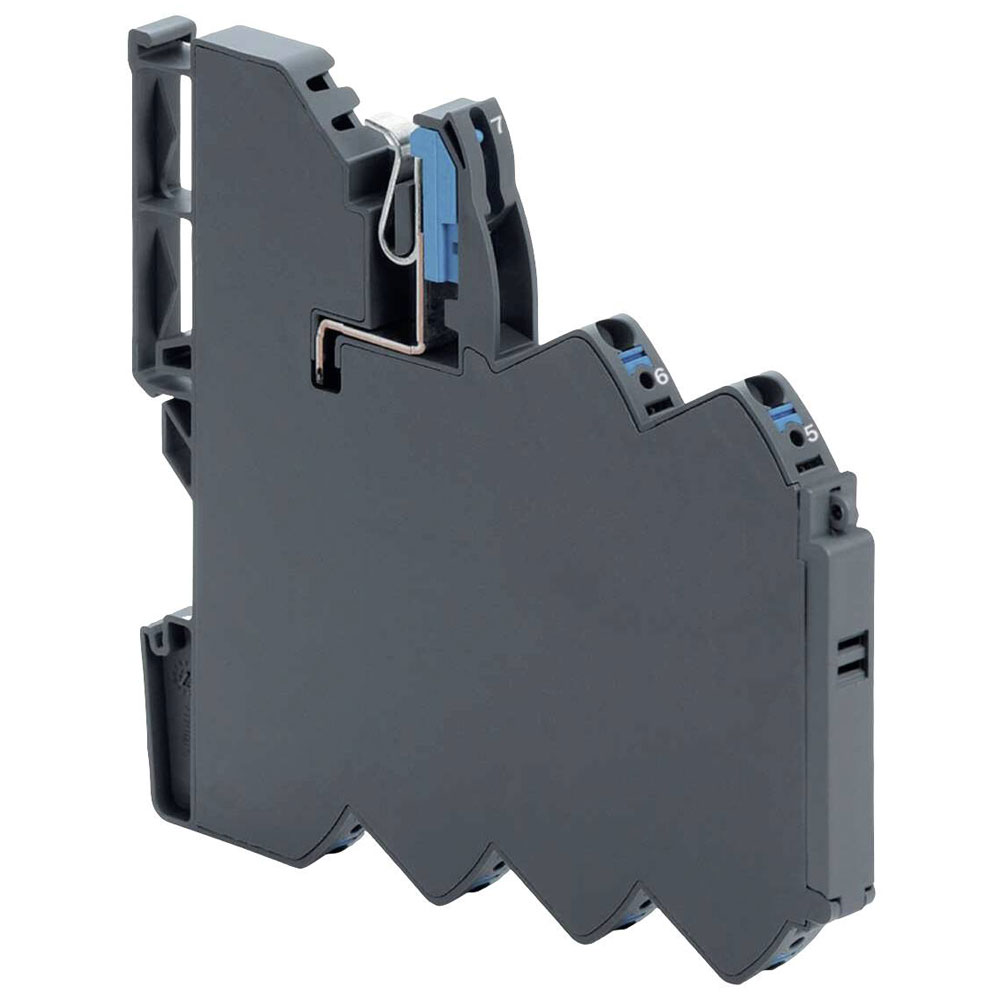

Lütze 716420 LOCC-Box Terminal Block Load Monitoring 40A 0V Clamp

The Lütze LOCC-Box-SK 7-6420 is a terminal block and monitoring relay designed for effective current monitoring and load control. This Lütze product, model 716420, ensures precise protection in automation systems. It is typically used in industrial applications for optimizing electrical distribution and safeguarding machinery.

Type	Terminal block
Current Rating	40A
AWG (min.)	24
AWG max.	14
Connection	Push-in connector
Cross section (inflexible) (max.)	2.5mm²
Cross section (inflexible) (min.)	0.25mm²
Current Ratng	10A
Depth	116mm
Dim	(W x H x D) 8.10 x 107.40 x 116 mm
Factory colour	Basalt grey
Height	107.40mm
IP Rating	IP20
Maximum Temperature	+50°C
Min. temperature	-25°C
Misc Attribute	LOCC-Box-SK 7-6420
Weight	102g
Width	8.10mm
