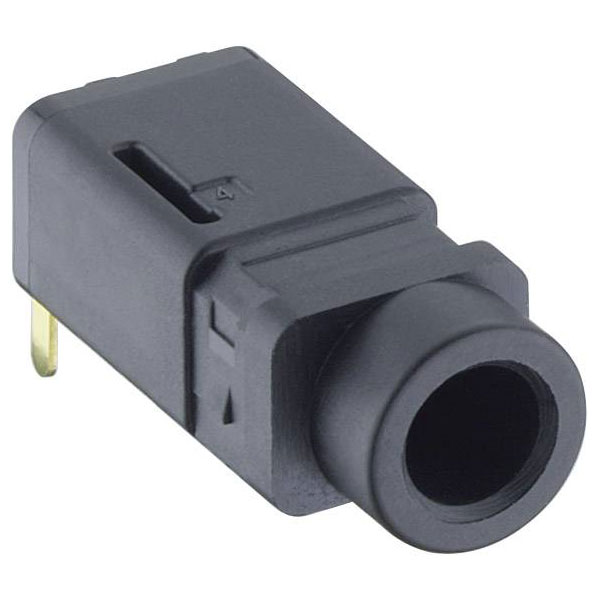

Lumberg 1503 16 3.5mm Audio Jack Socket 4 Pins Stereo Black Horizontal

The Lumberg 1503 16 is a 3.5 mm audio jack socket designed for horizontal mounting, featuring four pins and stereo capability in a black finish. Manufactured by Lumberg, it is suitable for use in audio devices where compact and reliable connections are necessary. Typically applied in consumer electronics, it ensures high-quality audio signal transmission.

Type	Socket Straight
Plug / Socket	Socket
Size	3.5mm
Colour	Black
Mounting Type	PCB
Audio channels	Stereo
Contact Plating	Cu-alloy, gold plated
Material	PA
Mating cycles	≥ 5000
Nominal Current	0.5A
Nominal Voltage	34V DC/AC
Number of pins	4
Number of Poles	4
Outside Ø	6mm
Recess diameter (details)	6mm
Switch contact	None
Temperature Range	-20 - +70°C
Termination	Solder
