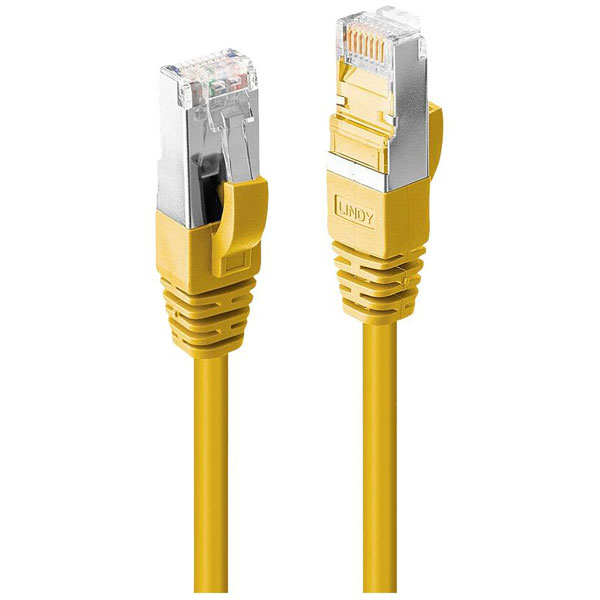

LINDY 47867 RJ45 Network cable patch cable CAT 6A S/FTP 7.50 m Yellow

LINDY 47867 is a high-performance network cable assembly designed to meet the demanding standards of modern data communication systems. This Cat.6A S/FTP ethernet cable features an LSZH (Low Smoke Zero Halogen) jacket, ensuring enhanced safety by minimising the release of toxic fumes in case of fire. With a length of 7.50 metres and an RJ45 connector, the cable is ideal for use in patch applications connecting devices such as routers, switches, and computers where high-speed data transfer rates up to 10 Gbps are required. Its S/FTP construction, with individually shielded wire pairs and an overall foil shield, provides excellent protection against electromagnetic interference, making it suitable for both commercial and industrial networking environments where data integrity is critical. The distinctive yellow colouring aids in easy cable management and identification within complex network installations.

LAN Category	CAT 6A
Length	7.5m
Colour	Yellow
Type	RJ45 plug
AWG	27
AWG wire size	27
Bend radius (min)	7.2 cm
Cable Design	Round
Cable Length	7.50m
Cable shape	Round
Cable shielding	S/FTP (S-STP)
Cable standard	Cat6a
Cable Use	Networks
Certification	RoHS, REACH
Compliance certificates	REACH, RoHS
Conductor Material	Copper
Connection Type	RJ45
Connector 1	RJ-45
Connector 1 dimensions (WxDxH)	11.6 x 21.5 x 8.3 mm
Connector 1 form factor	Straight
Connector 1 gender	Male
Connector 2	RJ-45
Connector 2 dimensions (WxDxH)	11.6 x 21.5 x 8.3 mm
Connector 2 form factor	Straight
Connector 2 gender	Male
Connector contacts plating	Nickel/Gold
Connector housing material	Polycarbonate (PC)
Connector shield material	Aluminium
Connector shielding	Yes
Connector Version	straight
Core Material	Copper
Depth	21.5mm
Frequency	500 MHz
Halogen free	Yes
Height	8.3mm
Jacket material	Low smoke zero halogen (LSZH)
Max. frequency	500MHz
No. of A connectors	1
No. of B connections	1
Operating temperature (T-T)	-10 - 60 °C
Outer Diameter	6 mm
Package type	Polybag
Product colour	Yellow
Product Type	Network cable, patch cable
Rack size	483 mm (19")
Shielding	S/FTP
Specification	CAT 6A
Storage temperature (T-T)	-20 - 75 °C
Sustainability compliance	Yes
Type A	RJ45 plug
Type B	RJ45 plug
Width	11.6mm
