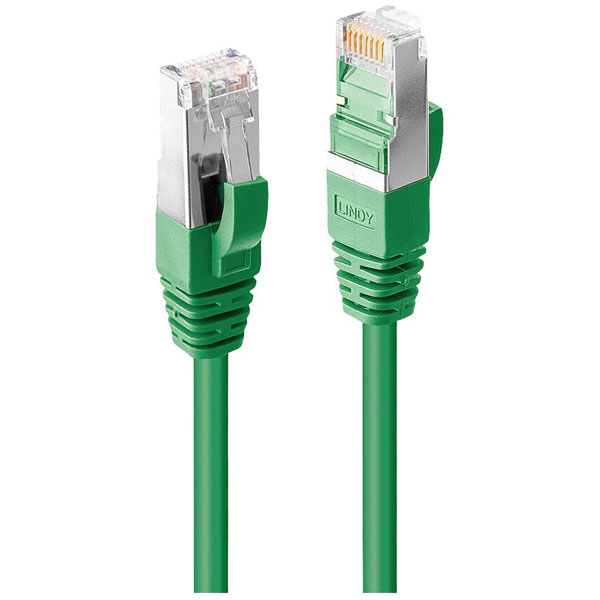

LINDY 47680 is a Cat.6A S/FTP LSZH patch cable designed for high-performance network connectivity, offering robust and reliable data transmission across a length of 3.00 metres. This green network cable features RJ45 connectors on both ends, making it suitable for a variety of network setups including router connections and switch linkages. The cable's shielded/foil twisted pair (S/FTP) construction minimizes electromagnetic interference, ensuring signal clarity, while the low smoke zero halogen (LSZH) jacket enhances safety by reducing toxic emissions in case of fire. It is ideal for use in environments where secure and high-speed data transfer is paramount, such as data centres, server rooms, and enterprise networking applications. As a critical component in network cable assemblies, this cable allows for efficient and seamless integration within complex IT infrastructure systems.
| LAN Category |
CAT 6A |
| Length |
3m |
| Colour |
Green |
| Type |
RJ45 plug |
| AWG |
27 |
| AWG wire size |
27 |
| Bend radius (min) |
7.2 cm |
| Cable Design |
Round |
| Cable Length |
3.00m |
| Cable shape |
Round |
| Cable shielding |
S/FTP (S-STP) |
| Cable standard |
Cat6a |
| Cable Use |
Networks |
| Cabling technology |
10GBase-T |
| Certification |
RoHS, REACH |
| Compliance certificates |
REACH, RoHS |
| Conductor Material |
Copper |
| Connection Type |
RJ45 |
| Connector 1 |
RJ-45 |
| Connector 1 dimensions (WxDxH) |
11.6 x 21.5 x 8.3 mm |
| Connector 1 form factor |
Straight |
| Connector 1 gender |
Male |
| Connector 2 |
RJ-45 |
| Connector 2 dimensions (WxDxH) |
11.6 x 21.5 x 8.3 mm |
| Connector 2 form factor |
Straight |
| Connector 2 gender |
Male |
| Connector contacts plating |
Nickel/Gold |
| Connector housing material |
Polycarbonate (PC) |
| Connector shield material |
Aluminium |
| Connector shielding |
Yes |
| Connector Version |
straight |
| Core Material |
Copper |
| Depth |
21.5mm |
| Doesnt contain |
Halogen |
| Frequency |
500 MHz |
| Halogen free |
Yes |
| Height |
8.3mm |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Max. frequency |
500MHz |
| No. of A connectors |
1 |
| No. of B connections |
1 |
| Operating temperature (T-T) |
-10 - 60 °C |
| Outer Diameter |
6 mm |
| Package type |
Polybag |
| Product colour |
Green |
| Product Type |
Network cable, patch cable |
| Rack size |
483 mm (19") |
| Shielding |
S/FTP |
| Specification |
CAT 6A |
| Storage temperature (T-T) |
-20 - 75 °C |
| Sustainability compliance |
Yes |
| Type A |
RJ45 plug |
| Type B |
RJ45 plug |
| Width |
11.6mm |
