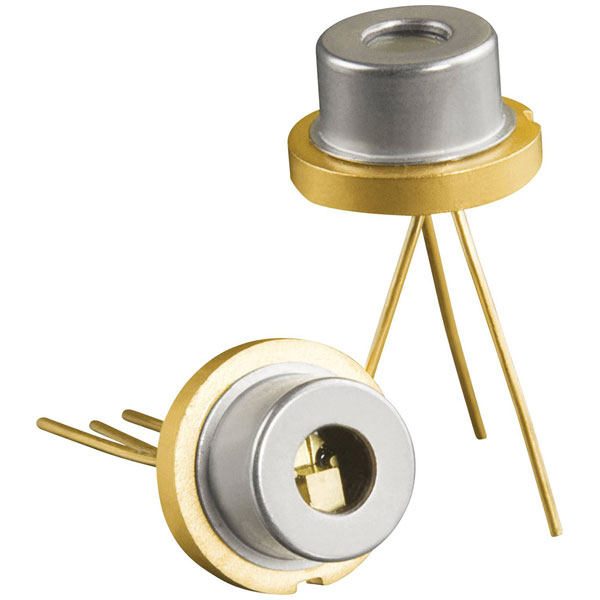

Laser Components 3030363 diode Infrared 830nm 250mW ADL-83 Y51 TL

Laser Components 3030363, also known as the ADL-83Y51TL, is a diode laser that operates within the infrared spectrum at 830 nm, delivering an output power of 250 mW. This semiconductor laser employs the principle of light amplification by stimulated emission of radiation, providing polarised light suitable for precise applications. Designed according to standards such as IEC 60825-1 and VDE 0837, it is a reliable component for use in optical communication systems, medical diagnostic equipment, and various industrial measurement devices. As a solid-state laser, it offers advantages in terms of compactness and durability, making it an ideal choice for engineers requiring a high-performance light source in demanding environments.

Type	Laser diode
Operating Distance	Not Specified
Wavelength	830nm
Optical Power	250mW
Colour	Infrared
Diameter	4mm
Dimensions	(Ø x L) 4 mm x 10 mm
Length	10mm
Maximum Temperature	-10°C
Minimum Temperature	+60°C
Operating Current	0.23A
Operating Voltage	2.2V
