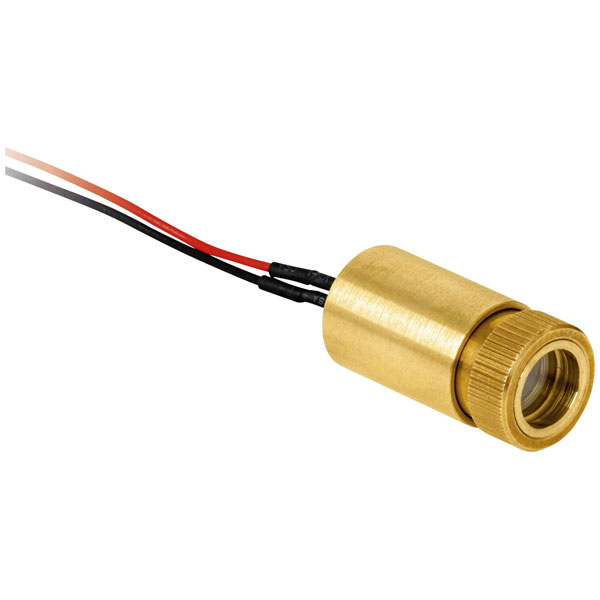

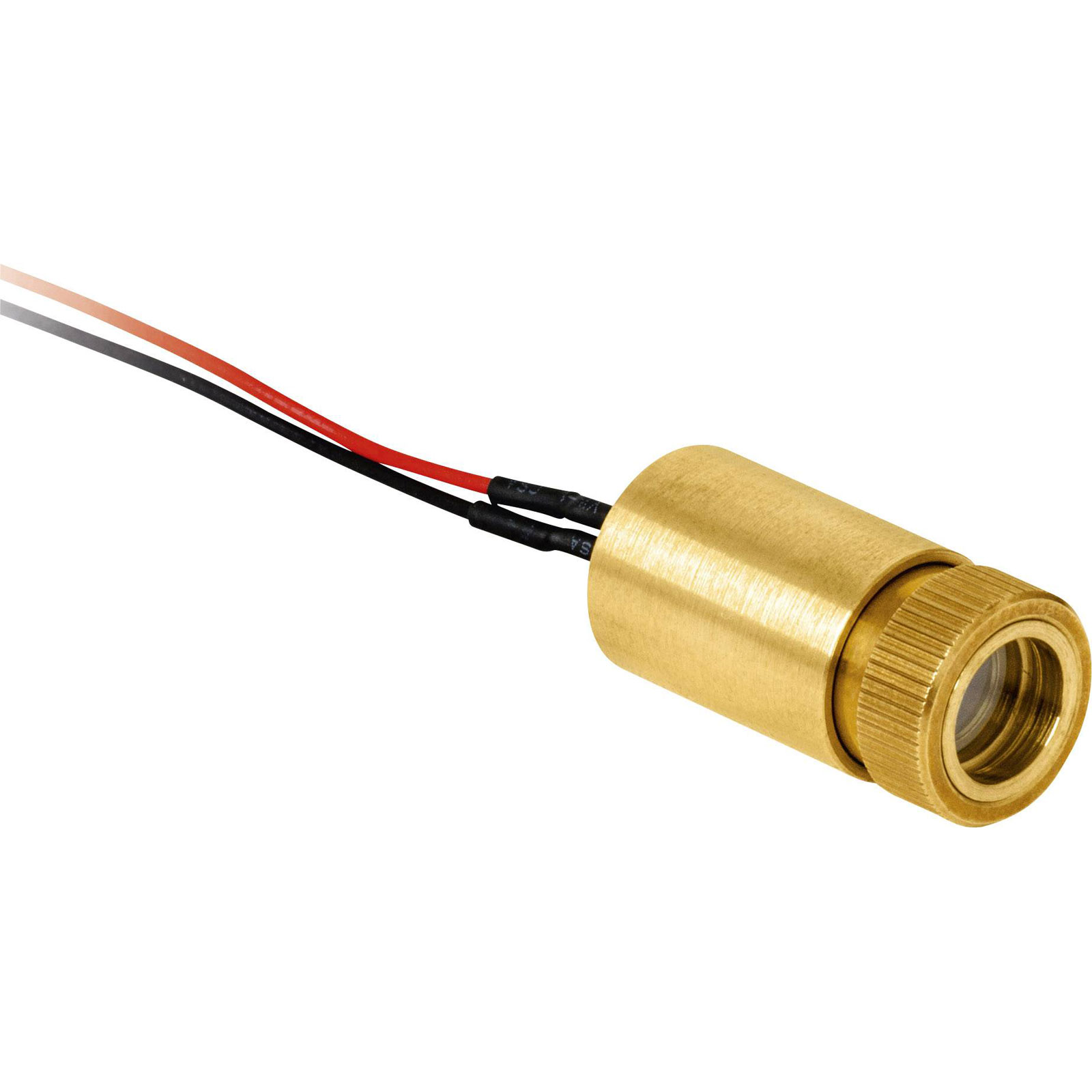

Laser Components 3022172 Laser module Line Red 3 mW

Laser Components 3022172 is a precision-engineered laser module designed to emit a red line with a power output of 3 mW. This advanced semiconductor laser, identified as model LC-LMP-635-287-03-A, employs solid state technology to achieve light amplification by stimulated emission of radiation, ensuring enhanced reliability and stability. Certified in compliance with standards such as EN 60825-1 and VDE 0837, it leverages polarised light for optimal performance. This component is commonly utilised in engineering applications that require precise alignment, surveying, or industrial imaging, where exacting accuracy and dependable light sources are critical.

Type	Laser module
Laser Class	1
Operating Distance	Not Specified
Wavelength	635nm
Optical Power	3mW
Angular Aperture	45°
Clearance	50mm
Colour	Red
Diameter	11mm
Dimensions	(Ø x L) 11 mm x 19 mm
Emission characteristics	Line
Focus properties	Selectable focus
Length	19mm
Max. operating voltage	3.3V DC
Maximum Temperature	50°C
Min. operating voltage	2.5V DC
Operating Current	45mA
