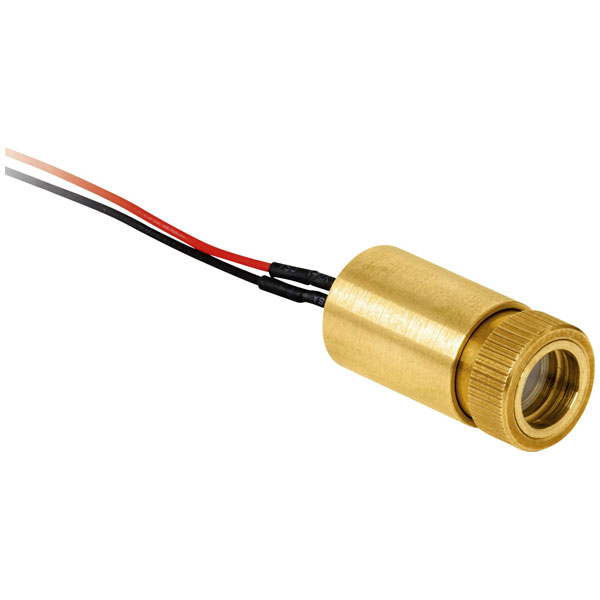

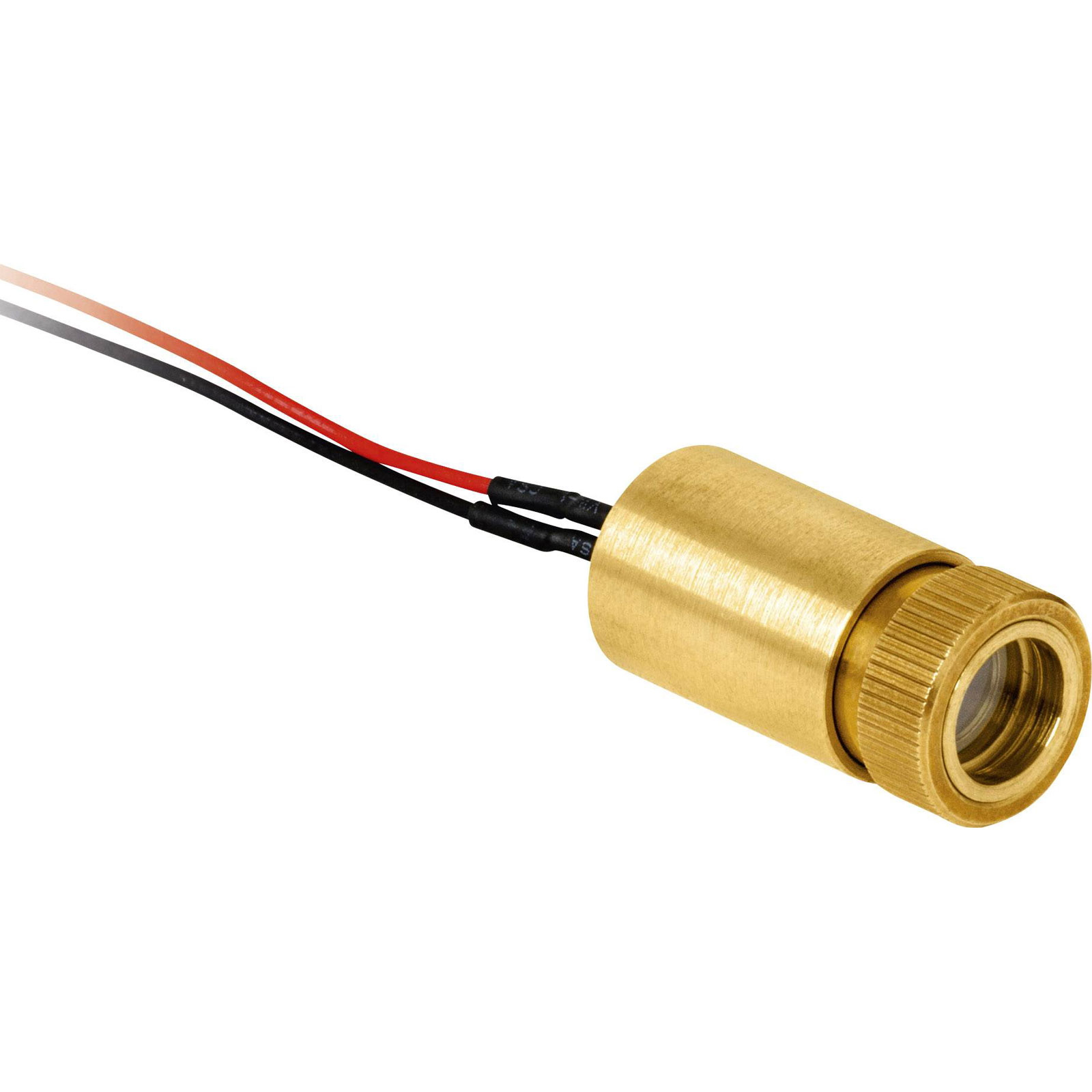

Laser Components 3022171 Laser module Line Red 3 mW 3 m LC-LMP-635-283-03-A

Laser Components 3022171, also known by its part number LC-LMP-635-283-03-A, is a high-precision laser module engineered for applications requiring consistent red line projection at a power output of 3 mW. This solid-state semiconductor laser takes advantage of advanced laser technology that utilises light amplification by stimulated emission of radiation to deliver precise and uniform illumination over its designated range. Engineered in accordance with safety standards such as IEC 60825-1 and VDE 0837, it ensures compliance with stringent safety protocols. Its capability to emit polarised light makes it suitable for various engineering applications, including alignment tasks, machine vision systems, and optical sensor fields, where precise linear laser guidance is essential.

Type	Laser module
Laser Class	1
Operating Distance	Not Specified
Wavelength	635nm
Optical Power	3mW
Angular Aperture	20°
Clearance	50mm
Colour	Red
Diameter	11mm
Dimensions	(Ø x L) 11 mm x 19 mm
Emission characteristics	Line
Focus properties	Selectable focus
Length	19mm
Max. operating voltage	3.3V DC
Maximum Temperature	50°C
Min. operating voltage	2.5V DC
Operating Current	45mA
