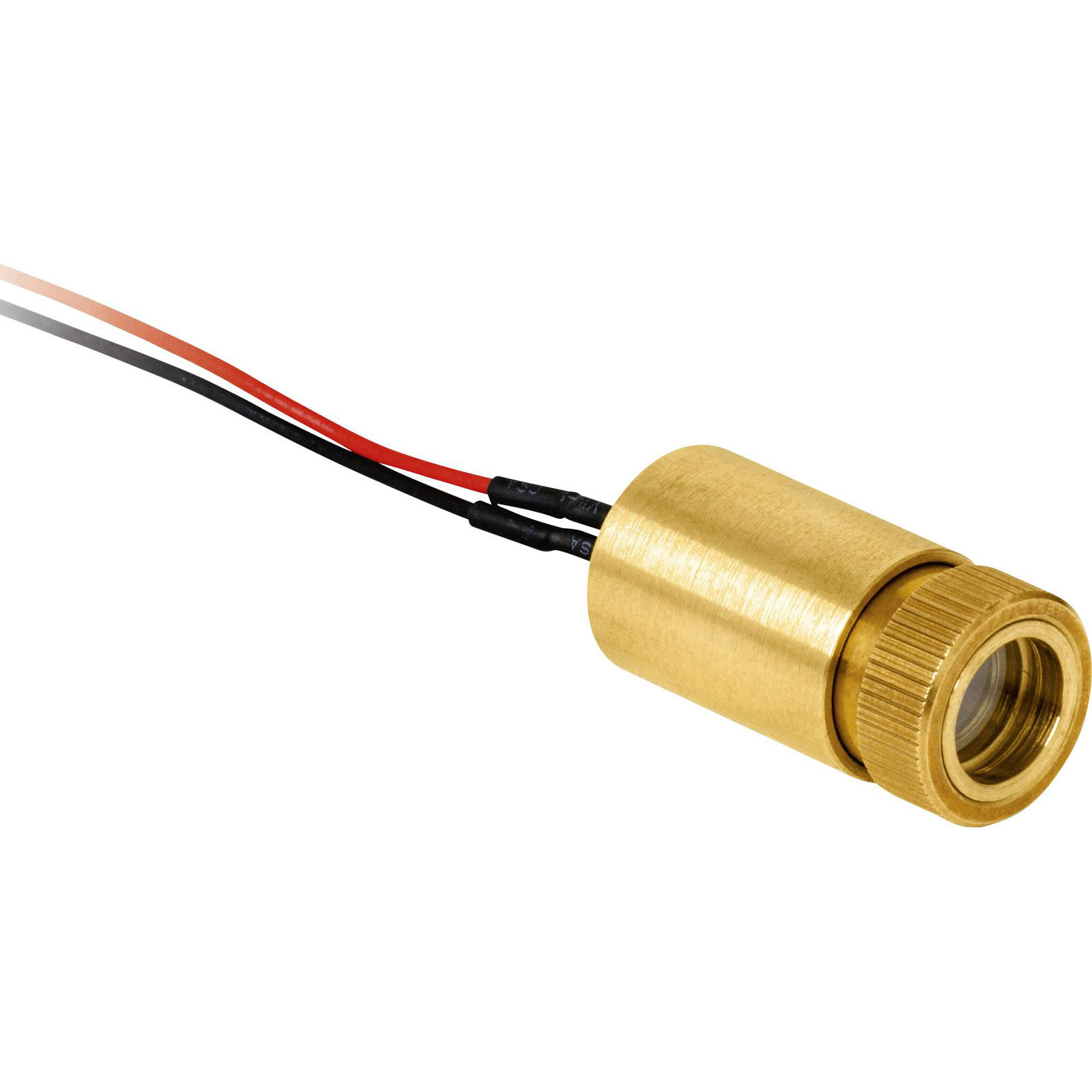

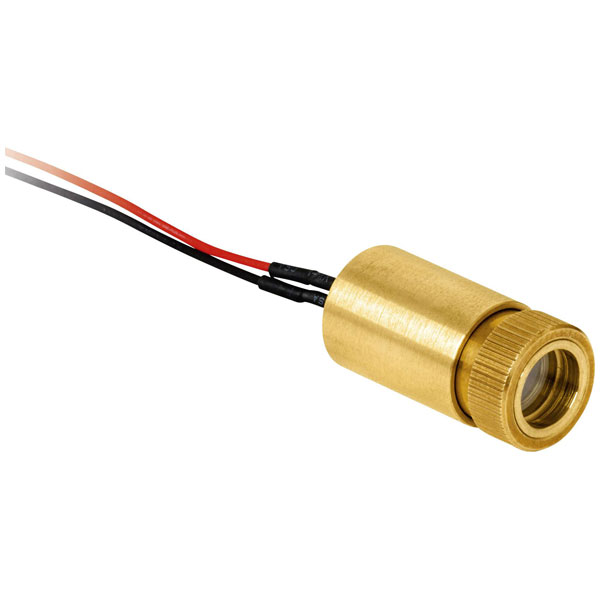

Laser Components 3022170 Laser module Cross Red 3mW LC-LMP-635-249-03-A

Laser Components 3022170, LC-LMP-635-249-03-A, is a laser module designed for precision applications, emitting a red laser beam with a power output of 3 mW. This advanced module utilises semiconductor laser technology, characterised by its solid-state construction and the generation of light through the process of light amplification by stimulated emission of radiation. It is an ideal component for systems requiring polarised light and is compliant with the EN 60825-1 safety standards, ensuring safe operation in accordance with industry regulations. Typically employed in a range of engineering environments, this laser module is suitable for tasks involving alignment, positioning, and measurement in both laboratory and industrial settings. Its integration into devices adhering to VDE 0837 standards reflects its robustness and reliability in demanding technical environments.

Type	Laser module
Laser Class	1
Operating Distance	Not Specified
Wavelength	635nm
Optical Power	3mW
Angular Aperture	45°
Clearance	50mm
Colour	Red
Diameter	11mm
Dimensions	(Ø x L) 11 mm x 19 mm
Emission characteristics	Cross
Focus properties	Selectable focus
Length	19mm
Max. operating voltage	3.3V DC
Max. temperature	50°C
Maximum Temperature	50°C
Min. operating voltage	2.5V DC
Min. temperature	0°C
Operating Current	45mA
