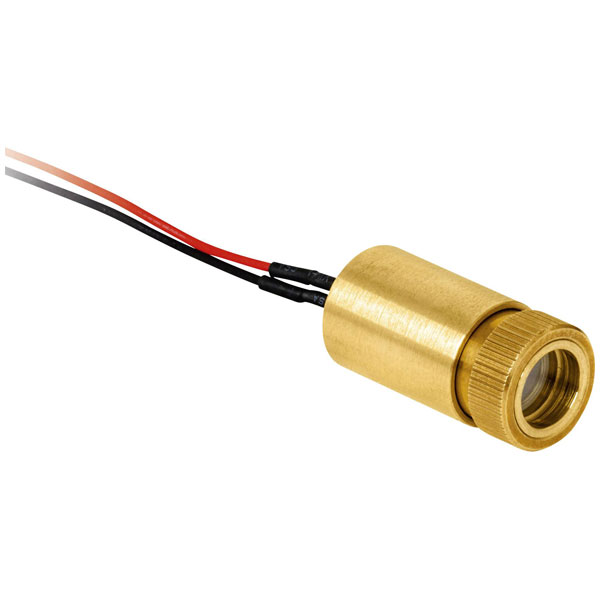

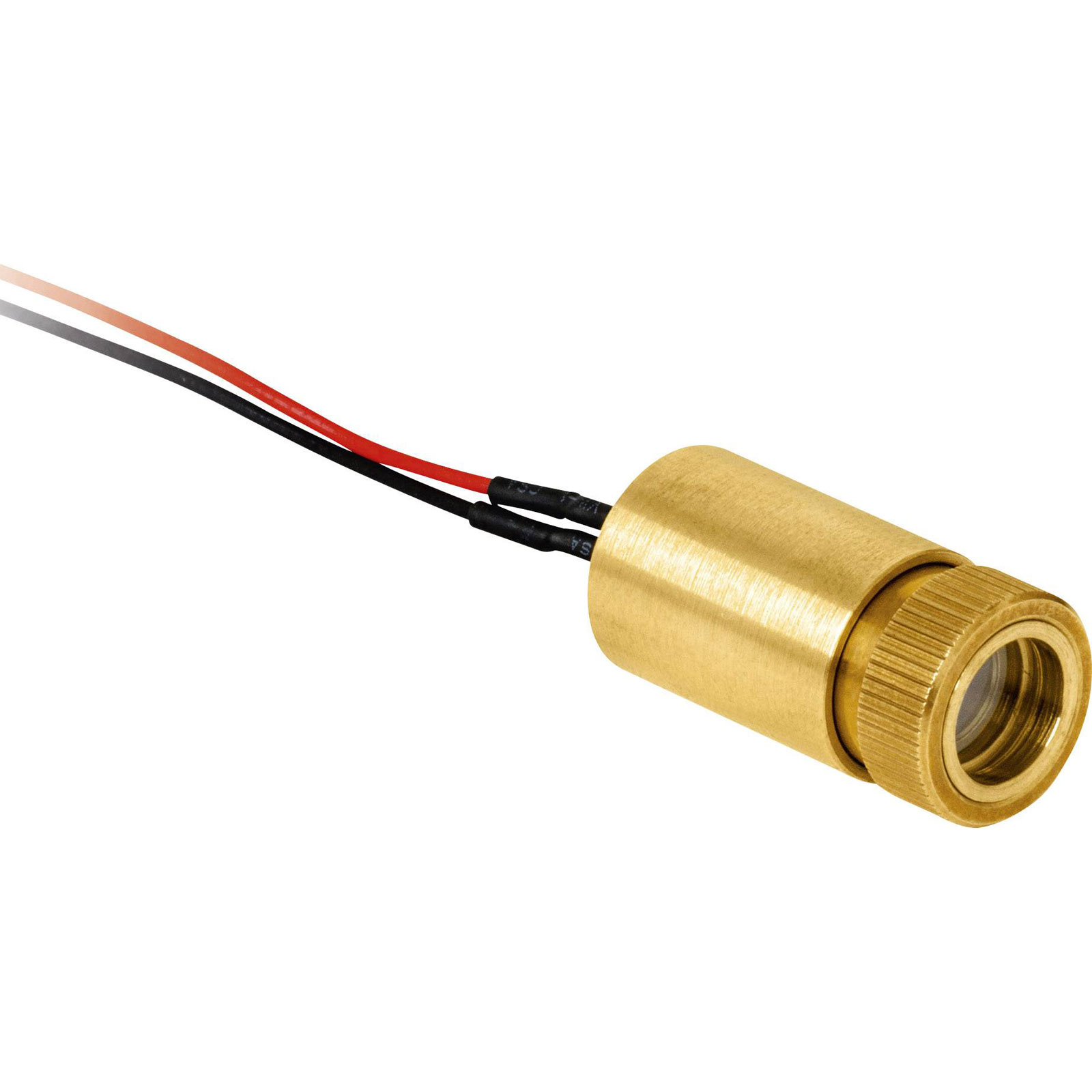

Laser Components 3022168 Laser module Cross Red 3 mW LC-LMP-635-245-03-A

Laser Components 3022168, LC-LMP-635-245-03-A, is a laser module distinguished by its emission of cross-patterned red light at a power output of 3 mW. This module utilises advanced laser technology, specifically light amplification by stimulated emission of radiation, and is based on semiconductor laser design. It complies with safety standards such as IEC 60825-1 and VDE 0837, ensuring reliable performance and safety. The laser's solid-state construction supports its use in a variety of engineering applications, including precision alignment, machine vision systems, and optical metrology, where polarised light and accurate beam shaping are crucial.

Type	Laser module
Laser Class	1
Operating Distance	Not Specified
Wavelength	635nm
Optical Power	3mW
Angular Aperture	10°
Clearance	50mm
Colour	Red
Diameter	11mm
Dimensions	(Ø x L) 11 mm x 19 mm
Emission characteristics	Cross
Focus properties	Selectable focus
Length	19mm
Max. operating voltage	3.3V DC
Max. temperature	50°C
Maximum Temperature	50°C
Min. operating voltage	2.5V DC
Min. temperature	0°C
Operating Current	45mA
