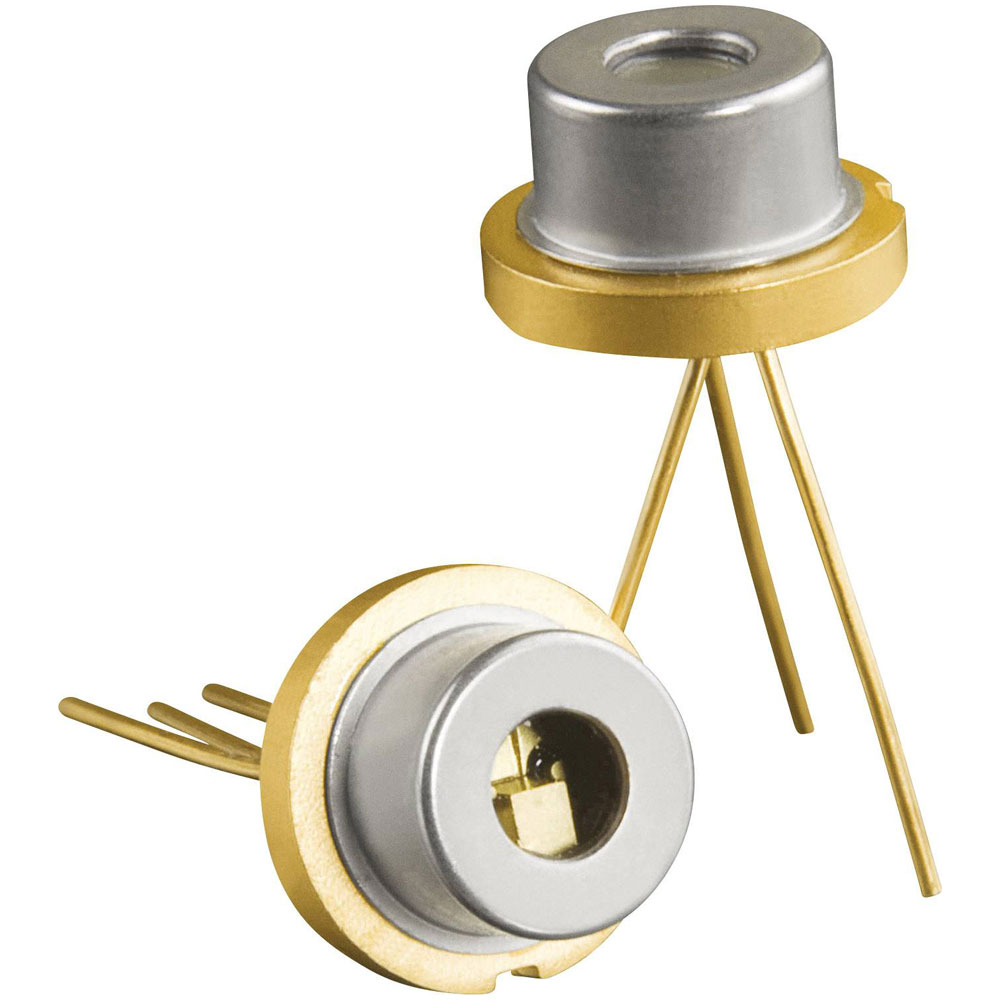

Laser Components 2008426 Laser diode Infrared 850 nm 5 mW ADL-85051 TL

Laser Components 2008426, ADL-85051 TL, is a high-precision infrared laser diode designed to operate at a wavelength of 850 nm with an output power of 5 mW. This semiconductor laser utilises advanced laser technology, leveraging light amplification by stimulated emission of radiation to produce polarised light. It is compliant with safety standard IEC 60825-1 and aligns with VDE 0837 regulations, ensuring safe and reliable performance suitable for engineering applications. The ADL-85051 TL is often employed in diverse applications such as fibre optic communications, infrared illumination, and optical sensor systems, where precise and stable infrared light sources are crucial. Its role in engineering projects often encompasses tasks requiring solid-state laser functionality with precise and efficient light emission characteristics.

Type	Laser diode
Operating Distance	Not Specified
Wavelength	850nm
Optical Power	5mW
Colour	Infrared
Diameter	4mm
Dimensions	(Ø x L) 4 mm x 10 mm
Length	10mm
Maximum Temperature	-10°C
Minimum Temperature	+50°C
Operating Current	0.026A
Operating Voltage	1.63V
