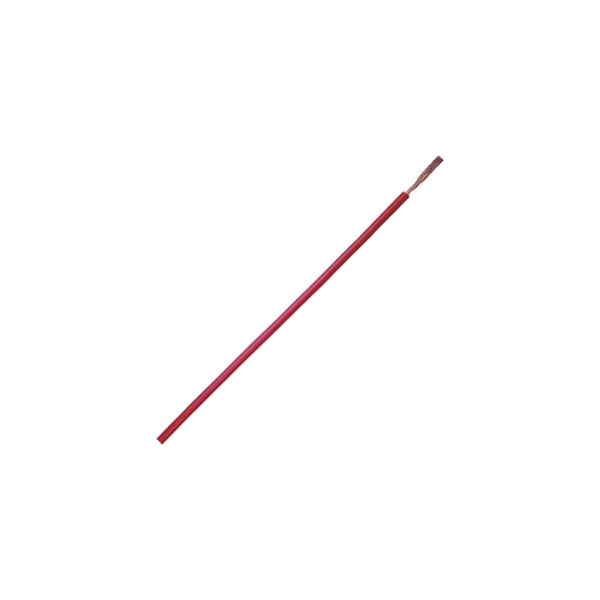

This multi-standard hook-up wire from LAPP has been designed to meet approval requirements both in Europe and in north America. It has a single finely stranded tin-plated copper core and is available in a range of sizes and colours.
- AWG (max): 12
- Cable features: Flame-retardant, Oil-resistant, Flexible, Harmonised
- Cable Type: MULTI-STANDARD SC 2.1 Strand
- Colour: Green-yellow
- Core layout: Finely stranded according to VDE 0295, Class 5/IEC 60228 Class 55
- Cross section 1 x 4mm²
- Specific volume resistivity: > 15GOhm xcm
- Material: Copper tin-plated
- Max. temperature range (fixed installation): +70°C
- Max. temperature range (flexible installation): +70°C
- Min. temperature range (fixed installation): -40°C
- Min. temperature range (flexible installation): -40°C
- No. of leads 1
- Nominal voltage: 750V
- Nominal voltage U0: 450V
- Outside diameter: 4.40mm
- Sold per metre: Yes
- Standards: MULTINORM (MTW) HAR/UL/CSA
- Test voltage: 2500V
- Manufacturer's part 4160600
This cable will be supplied in one continuous length, subject to the maximum reel size. For example, an order for 7 metres of cable will result in a single 7-metre cable being supplied, not 7 one-metre lengths.
| Colour |
Green/yellow |
| Conductor Stranding |
1 x 4mm² |
| Insulation Material |
Polyvinyl chloride |
| Length |
Sold per metre |
| Cable Diameter |
4.4mm |
| Conductor Cross-section |
4mm² |
| Sold by Metre |
Yes |
| Standards |
UL standard 1063 MTW, UL rec |
