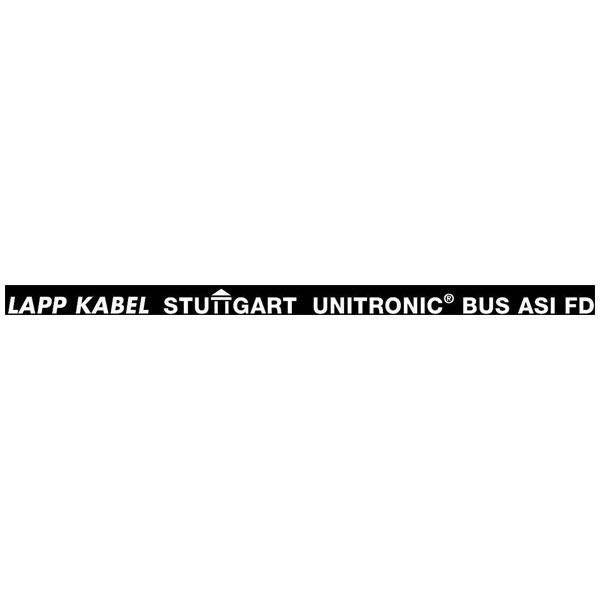

LAPP 2170830/1 bus cable 2x1.50 mm² yellow for sensors/actuators

LAPP
Order Code:

67-5851

Brand: LAPP MPN: 2170830/1 EAN-13: 2050000204388
Qty Unit Price (Ex VAT)
2+ £2.93
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
239 available to back orderBack-order availability date - 09/01/2026

Networking system for the lowest level field area (binary sensors and actuators). Data and power are transmitted between the control unit and peripherals via an unshielded, geometrically coded, two-conductor flat cable (protection against incorrect polarity). Insulation displacement technology is used to connect the conductors in the ASI modules. The Europe-wide EN 50295 and international IEC 62026-2 standards apply to ASI.
Colour Yellow
Insulation Material TPE
Type Cable
Conductor Cross-section 1.50mm²
Halogen-free No
Height 4mm
Max. temperature range (fixed installation) +105°C
Max. temperature range (flexible installation) +105°C
Min. temperature range (fixed installation) -40°C
Min. temperature range (flexible installation) -30°C
Misc Attribute 1 UNITRONIC® BUS ASI (TPE) YE UL/CSA AWM
Misc Attribute 2 BUS ASI (TPE) YE UL/CSA (AWM)
Misc Attribute 3 Transfer data and energy
Number of leads 2
Packaged No
Shielded No
Sold by Metre Yes
Test voltage Wire/Wire: 2000V
Width 10mm
