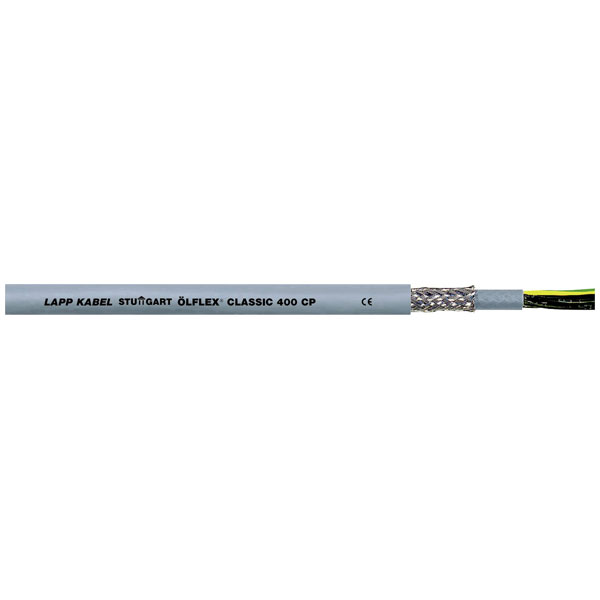

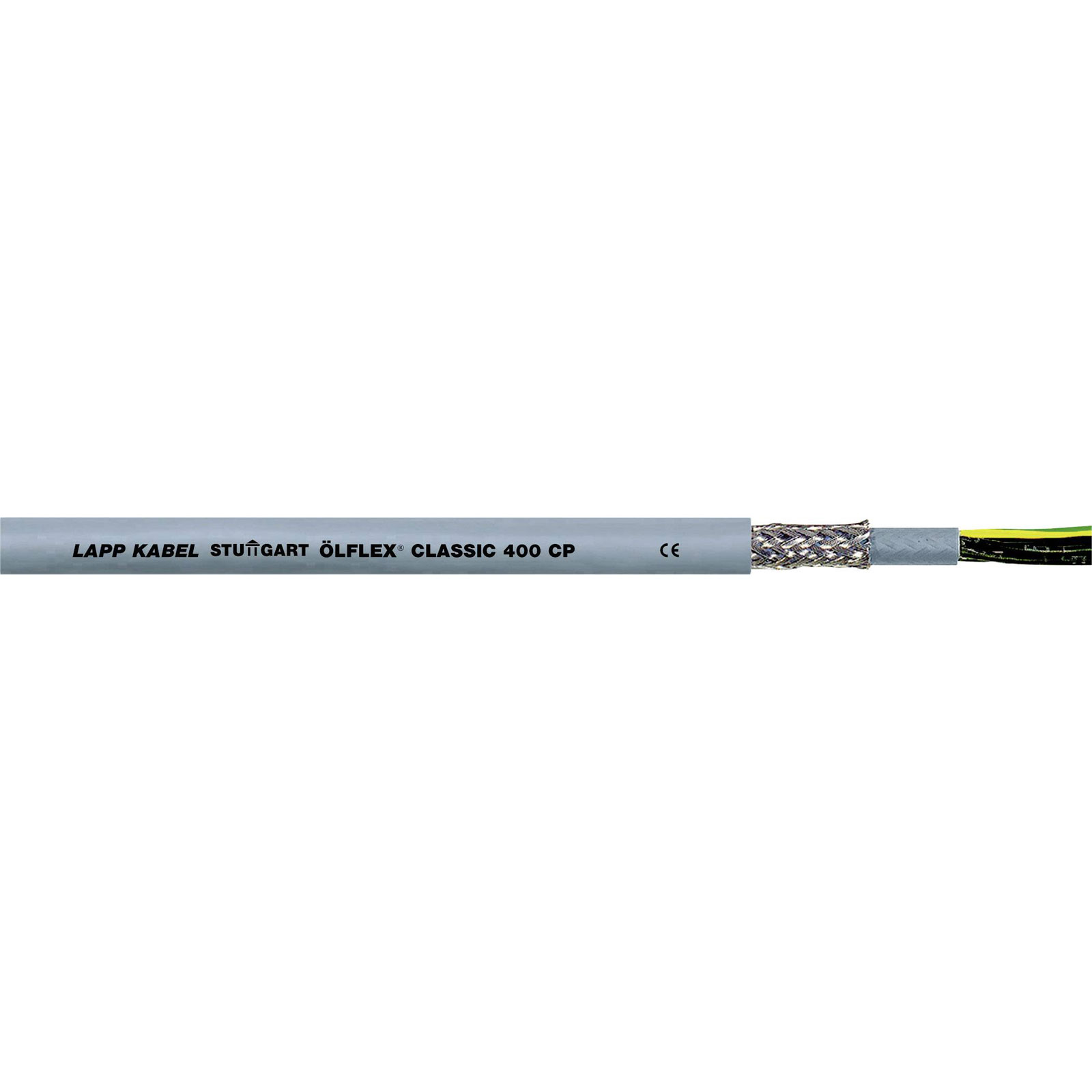

LAPP 1313303/1 Classic 400 CP control lead 3G 1.50 mm² grey per metre

LAPP
Order Code:

67-5737

Brand: LAPP MPN: 1313303/1 EAN-13: 2050003800853
Qty Unit Price (Ex VAT)
2+ £3.65
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
17 in stock, despatched in 4 working days

Because of its excellent mechanical, chemical and UV resistance, this shielded cable is highly wear-resistant in applications with harsh operational conditions.
Insulation material Polyurethane
Bend radius Minimum bend radius for flexible application: 20 x external Ø; when laid fixed: 4 x external Ø
Bend radius (no. of ODs for fixed installation) 4
Bend radius (no. of ODs for flexible installation) 20
Cable type ÖLFLEX® CLASSIC 400 CP
Certification marks {DIN} VDE following; VDE Reg. No. 7030, sheath according to VDE 0250/0282.
Core layout Finely stranded according to VDE 0295, Class 5/IEC 228 Class 5
Cross section (each core) 1.50mm²
Factory colour Grey
Halogen-free No
Max. length sold by the metre 100m
Max. temperature range (fixed installation) +85°C
Max. temperature range (flexible installation) +70°C
Min. temperature range (fixed installation) -40°C
Min. temperature range (flexible installation) -5°C
Misc Attribute ÖLFLEX® CLASSIC 400 CP
No. of leads 3 G
Nominal voltage 500V
Nominal voltage (details) 300/500V
Nominal voltage U0 300V
Number-coded Yes
Outside Ø 8.90mm
Packaged No
Sold per metre Yes
Suited for cable carriers No
Temperature range -5 - +70 °C, applications with movement: · Fixed installation: -40 - +80°C
Type Control Lead
Wire ID code black conductors with white numbering (VDE 0293)
