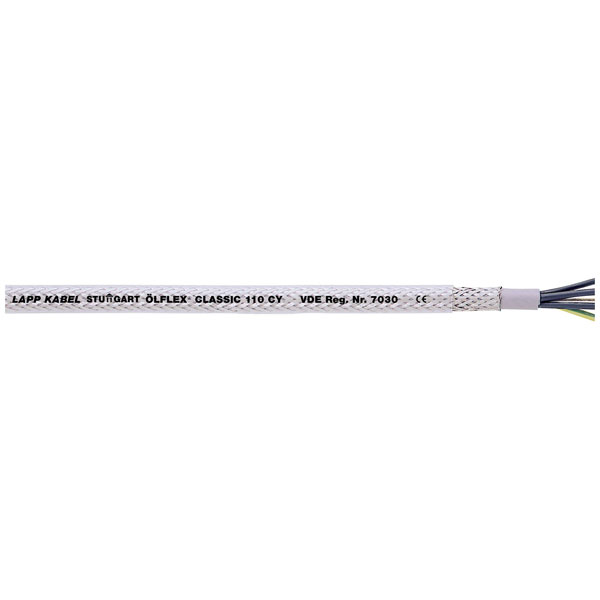

This most extensive oil and chemical resistant control cable with braided shield is particularly suitable for use in the industrial environment due to its robustness and flexibility. The fields of mechanical and plant engineering, machine tool manufacture, enamelling, power stations, refrigeration plants etc. are only a few examples of where ÖLFLEX® CLASSIC 110 CY is used.
| Bend radius |
20 x external dia. for wide range of applications, 6 x external dia. when permanently installed |
| Bend radius (no. of ODs for fixed installation) |
6 |
| Bend radius (no. of ODs for flexible installation) |
20 |
| Certification marks |
VDE-Reg. No. 7030 |
| Core layout |
Finely stranded according to VDE 0295, Class 5/IEC 228 Class 55 |
| Cross section (each core) |
0.75mm² |
| Factory colour |
Transparent |
| Halogen-free |
No |
| Max. length sold by the metre |
300m |
| Max. temperature range (fixed installation) |
+80°C |
| Max. temperature range (flexible installation) |
+70°C |
| Min. temperature range (fixed installation) |
-40°C |
| Min. temperature range (flexible installation) |
-5°C |
| Misc Attribute 1 |
ÖLFLEX® CLASSIC 110 CY |
| Misc Attribute 2 |
ÖLFLEX CLASSIC 110 CY |
| No. of leads |
12 G |
| Nominal voltage |
500V |
| Nominal voltage (details) |
300/500V |
| Nominal voltage U0 |
300V |
| Number-coded |
Yes |
| Outside Ø |
12.30mm |
| Packaged |
No |
| Sold per metre |
Yes |
| Suited for cable carriers |
No |
| Temperature range |
-5 - +70 °C, applications with movement: · Fixed: -40 - +80°C |
| Test voltage |
4000V |
| Type |
Control Lead |
| Wire ID code |
Black conductors with white numbering (VDE 0293) |
