Control and connection cable, especially under industrial conditions. Mainly in dry, damp or wet areas in normal mechanical stress.. Outdoors, under the temperature observation and not without UV protection. For free appliances, not continuously moving and without tensile loads or compulsory guidance, and for fixed installations.
Engineering, plant construction, painting, heating and air conditioning, power plant technology.
Optimized, small external diameter and therefore reduced space requirements. High insulation safety by 4 kV test voltage. During production, free from paint-wetting impairment substances (LBS-free / silicone), making it suitable for painting.
| Colour |
Grey |
| Type |

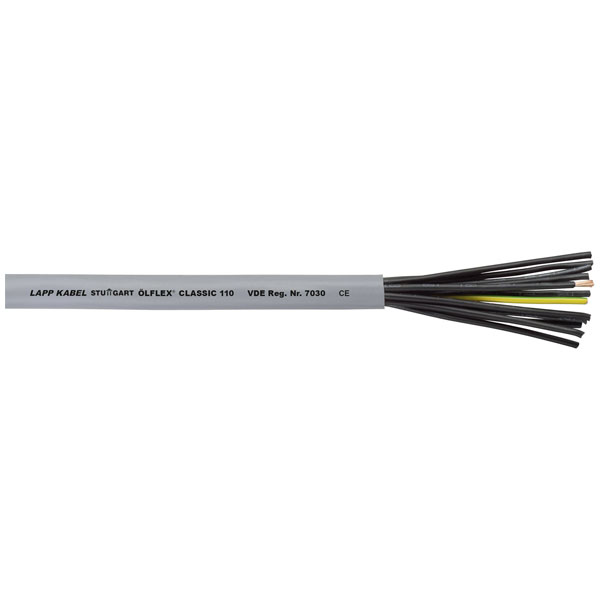

ÖLFLEX® CLASSIC 110 |
| Bend radius |
15 x external dia. for wide range of applications, 4 x external dia. when permanently installed |
| Bend radius (no. of ODs for fixed installation) |
4 |
| Bend radius (no. of ODs for flexible installation) |
15 |
| Cable Diameter |
12mm |
| Conductor Cross-section |
1.50mm² |
| Core layout |
Finely stranded according to VDE 0295, Class 5/IEC 60228 Class 5 |
| Halogen-free |
No |
| Max. temperature range (fixed installation) |
+80°C |
| Max. temperature range (flexible installation) |
+70°C |
| Min. temperature range (fixed installation) |
-40°C |
| Min. temperature range (flexible installation) |
-5°C |
| Nominal Voltage |
300V |
| Number of leads |
12 G |
| Number-coded |
Yes |
| Packaged |
No |
| Sold by Metre |
Yes |
| Standards |
Black conductors with white numbering (VDE 0293) |
| Suited For Cable Carriers |
No |
| Temperature Range |
-5 - +70 °C, applications with movement: · Fixed installation: -40 - +80 °C°C |
| Test voltage |
4000V |
