Control and connection cable, especially under industrial conditions. Mainly in dry, damp or wet areas in normal mechanical stress.. Outdoors, under the temperature observation and not without UV protection. For free appliances, not continuously moving and without tensile loads or compulsory guidance, and for fixed installations.
Engineering, plant construction, painting, heating and air conditioning, power plant technology.
Optimized, small external diameter and therefore reduced space requirements. High insulation safety by 4 kV test voltage. During production, free from paint-wetting impairment substances (LBS-free / silicone), making it suitable for painting.
| Bend radius |
15 x external dia. for wide range of applications, 4 x external dia. when permanently installed |
| Bend radius (no. of ODs for fixed installation) |
4 |
| Bend radius (no. of ODs for flexible installation) |
15 |
| Cable type |

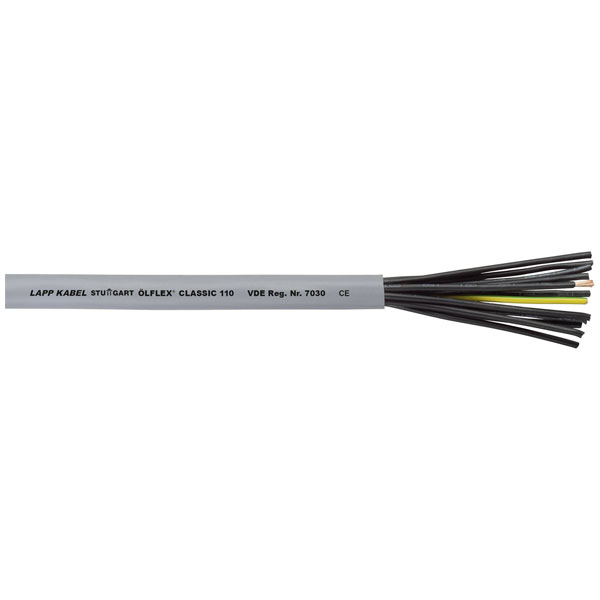

ÖLFLEX® CLASSIC 110 |
| Certification marks |
VDE-Reg. Nr. 7030 |
| Core layout |
Finely stranded according to VDE 0295, Class 5/IEC 60228 Class 5 |
| Cross section (each core) |
1.50mm² |
| Factory colour |
Grey |
| Halogen-free |
No |
| Max. length sold by the metre |
500m |
| Max. temperature range (fixed installation) |
+80°C |
| Max. temperature range (flexible installation) |
+70°C |
| Min. temperature range (fixed installation) |
-40°C |
| Min. temperature range (flexible installation) |
-5°C |
| Misc Attribute |
ÖLFLEX® CLASSIC 110 |
| No. of leads |
5 G |
| Nominal voltage |
500V |
| Nominal voltage (details) |
300/500V |
| Nominal voltage U0 |
300V |
| Number-coded |
Yes |
| Outside Ø |
8.60mm |
| Packaged |
No |
| Sold per metre |
Yes |
| Suited for cable carriers |
No |
| Temperature range |
-5 - +70 °C, applications with movement: · Fixed installation: -40 - +80 °C°C |
| Test voltage |
4000V |
| Type |
Control Lead |
| Wire ID code |
Black conductors with white numbering (VDE 0293) |
