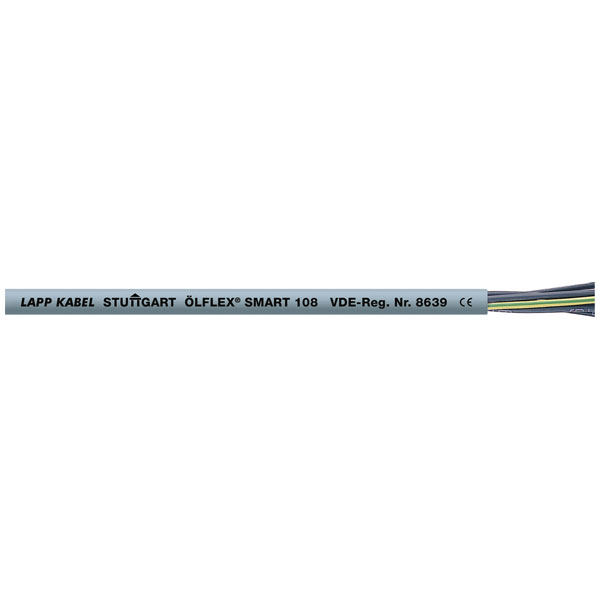

SMART: no more than necessary - the basic version of a flexible control cable by LAPP. The inner sheath layer made of regeneriertem PVC with unchanged high quality of the type TM2 relieves the environment. For fixed laying as well as also for flexible applications with free, not constantly recurring movement without tensile stress. Mainly in dry, moist or wet rooms at normal mechanical load. Application in mechanical engineering, plant construction, painting, heating and air-conditioning technology, power plant technology. Optimised, small outer-Ø and this reduced space requirement. High insulation safety through 4 kV test voltage. During production, free from paint-wetting impairment substances (LBS-free / silicone), making it suitable for painting.
.
| Colour |
Grey |
| Insulation Material |
PVC |
| Type |
ÖLFLEX SMART 108 4G0,75 100M RG |
| Bend radius (no. of ODs for fixed installation) |
4 |
| Bend radius (no. of ODs for flexible installation) |
15 |
| Cable Diameter |
6.20mm |
| Cable features |
Flexible |
| Conductor Cross-section |
0.75mm² |
| Core layout |
Finely stranded according to DIN EN 60228 (VDE 0295), Class 5/IEC 60228 Class 5 |
| Halogen-free |
No |
| Max. temperature range (fixed installation) |
+80°C |
| Max. temperature range (flexible installation) |
+70°C |
| Min. temperature range (fixed installation) |
-40°C |
| Min. temperature range (flexible installation) |
-5°C |
| Nominal Voltage |
300V |
| Number of leads |
4 G |
| Number-coded |
Yes |
| Packaged |
Yes |
| Sold by Metre |
No |
| Standards |
Black wires with white numbering (VDE 0293) |
| Suited For Cable Carriers |
No |
| Test voltage |
4000V |
