LAPP 0046501 ÖLFLEX® HEAT 180 EWKF Black Control Data Cable 3x0.75mm²

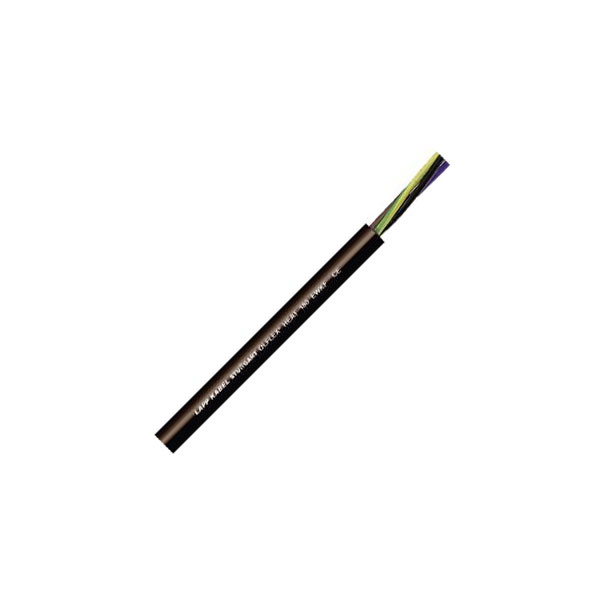

Image Representative of Range

LAPP 0046501 ÖLFLEX® HEAT 180 EWKF Black Control Data Cable 3x0.75mm²

LAPP
Order Code:

63-5725

Brand: LAPP MPN: 0046501
Qty Unit Price (Ex VAT)
2+ £3.81
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
136 in stock, despatched in 4 working days

These silicone control cables from LAPP have a black sheath and provide greater durability in harsh conditions than conventional cables. These flexible cables are ideal for use in areas with high ambient temperatures.


  • Bend radius (no. of ODs for fixed installation): 4
  • Bend radius (no. of ODs for flexible installation): 15
  • Cable features: Halogen-free, Flame-retardant, Oil-resistant, Heat-resistant
  • Cable Type: ÖLFLEX® HEAT 180 EWKF High-temperature cable
  • Colour: Black
  • Cross section 3 x 0.75mm²
  • Insulation material: Silicone
  • Max. temperature range (fixed installation): +180°C
  • Min. temperature range (fixed installation): -50°C
  • No. of leads 3
  • Nominal voltage: 500V
  • Nominal voltage U0: 300V
  • Outside diameter: 6.9mm
  • Sold per metre: Yes
  • Manufacturer's part 0046501

This cable will be supplied in one continuous length, subject to the maximum reel size. For example, an order for 7 metres of cable will result in a single 7-metre cable being supplied, not 7 one-metre lengths.
Colour Black
Number of Cores 3
Insulation Material Silicone
Cable Diameter 6.9mm
Conductor Cross-section 3 x 0.75mm²
Sold by Metre Yes
