LAPP 0038404 UNITRONIC® LiHCH (TP) Grey Data Cable 4 x 2 x 0.25mm²

LAPP
MPN
38404/1
Brand
LAPP
EAN-13
2050001428158
Order Code
63-4293
Country of Origin
Turkey
View Full Product Range (4)

Discontinued

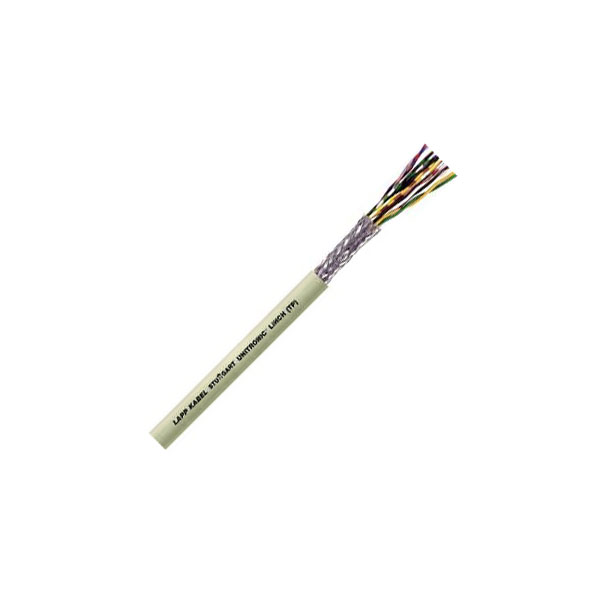

Halogen-free screened grey data cable from LAPP with colour-coded twisted pairs, suitable for use in public buildings and on transport systems.


  • Bend radius (no. of ODs for fixed installation): 6
  • Bend radius (no. of ODs for flexible installation): 15
  • Cable features: Halogen-free, Shielded, Flame-retardant
  • Cable Type: UNITRONIC® LiHCH (TP) Data cable
  • Colour: Pebble grey (RAL 7032)
  • Cross section 4 x 2 x 0.25mm²
  • Halogen free
  • Insulation material: Polymer
  • Max. temperature range (fixed installation): +80°C
  • Max. temperature range (flexible installation): +70°C
  • Min. temperature range (fixed installation): -30°C
  • Min. temperature range (flexible installation): -5°C
  • No. of leads 8
  • Outside diameter: 7.8mm
  • Shielded: Yes
  • Sold per metre: Yes
  • Manufacturer's part 0038404

This cable will be supplied in one continuous length, subject to the maximum reel size. For example, an order for 7 metres of cable will result in a single 7-metre cable being supplied, not 7 one-metre lengths.
Colour Grey
Number of Cores 4
Conductor Cross Section 4 x 2 x 0.25mm²
AWG Not Specified
Conductor Stranding Finely stranded
Insulation Material Polymer (P)
Length Sold per metre
Cable Diameter 7.8mm
Sold by Metre Yes
Type Data cable
