LAPP 0031336 LI2YCY TP Grey Data Cable 1 x 2 x 0.5mm²

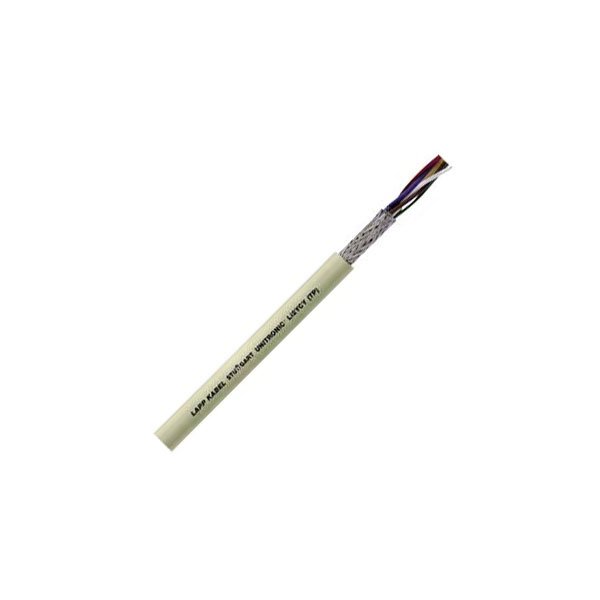

Image Representative of Range

LAPP 0031336 LI2YCY TP Grey Data Cable 1 x 2 x 0.5mm²

LAPP
Order Code:

63-4791

Brand: LAPP MPN: 31336/1 EAN-13: 2050000472213
Qty Unit Price (Ex VAT)
5+ £5.36
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
Available to back orderBack order, lead time 6 weeks

This screened data transmission cable from LAPP has PE core insulation, 7-wire strands and twisted pairs and is particularly suitable for wiring data systems with transmission rates up to 10 Megabits per second.


  • EMC-conforming
  • Bend radius (no. of ODs for fixed installation): 7.5
  • Cable features: Shielded, Flame-retardant
  • Cable Type: UNITRONIC® Li2YCY (TP) Data cable
  • Colour: Grey
  • Core layout: Strand, DIN VDE in accordance with VDE 0881, 7-wire
  • Cross section 1 x 2 x 0.5mm²
  • Insulation material: PVC
  • Max. temperature range (fixed installation): +80°C
  • Max. temperature range (flexible installation): +70°C
  • Min. temperature range (fixed installation): -40°C
  • Min. temperature range (flexible installation): -5°C
  • No. of leads 2
  • Outside diameter: 6.3mm
  • Peak operating voltage: 250V (not for heavy current applications)
  • Shielded: Yes
  • Sold per metre: Yes
  • Manufacturer's part 0031336

This cable will be supplied in one continuous length, subject to the maximum reel size. For example, an order for 7 metres of cable will result in a single 7-metre cable being supplied, not 7 one-metre lengths.
Colour Grey
Number of Cores 1
Conductor Cross Section 1 x 2 x 0.5mm²
AWG Not Specified
Conductor Stranding Finely stranded
Insulation Material Polyvinyl Chloride (PVC)
Length Sold per metre
Cable Diameter 6.3mm
Sold by Metre Yes
