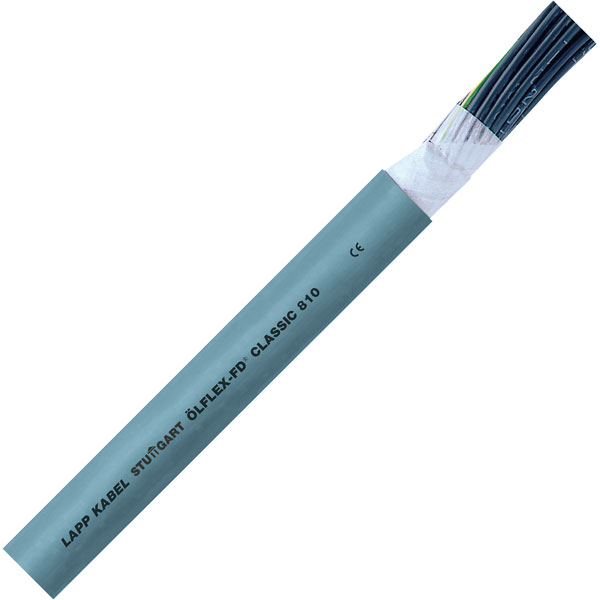

LAPP 0026123 ÖLFLEX FD CLASSIC 810 PVC Drag Chain Cable 7x0.75mm Grey

This LAPP ÖLFLEX FD CLASSIC 810 Drag Chain Cable is highly flexible. The PVC control cable is used for connecting fixed installations, automation, assembly and robotics. The cable is resistant against acids and caustic solution and can be used in dry, damp or wet rooms.

• Coded numbers
• Highly flexible
• Bending radius: Minimum bend radius for flexible application: 7.5x external dia
• Colour: Grey
• Colour-coded: No
• Core layout: Extra-fine strands according to VDE 0295 class 6/IEC 60228 CI.66
• Cross-section: 7 x 0.75 mm²
• Halogen-free: No
• Nominal voltage: 300/500V
• Number-coded: Yes
• Shielded: No
• Sold per metre: Yes
• Standards/test marks: {DIN} VDE compliant, conductors to VDE 0245/0281 sheath to VDE 0245/0281.
• Temperature range: Active: 0°C to +70°C, fixed: -40°C to +80°C
• Wire ID code: Black conductors with white numbering (VDE 0293)
• Supplied in lengths of 1m
• Manufacturer's part: 0026123 ÖLFLEX FD CLASSIC 810 PVC

This cable will be supplied in one continuous length, subject to the maximum reel size. For example, an order for 7 metres of cable will result in a single 7-metre cable being supplied, not 7 one-metre lengths.

Colour	Grey
Number of Cores	7
Conductor Cross Section	0.75mm²
Insulation Material	PVC
Cable Diameter	8.9mm
Sold by Metre	Yes
