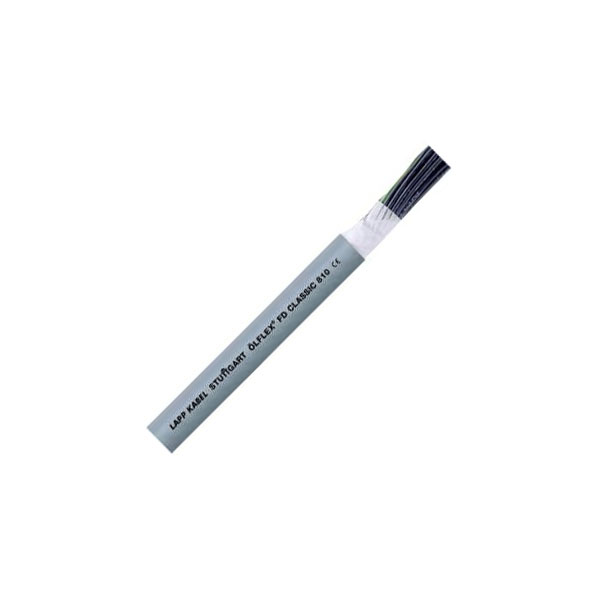

This highly flexible drag chain cable from LAPP is suitable for use in assembly lines, production lines, and with machines of all kinds.
Oil-resistant, highly flexible and abrasion-proof PUR-connection line of the latest generation can be used even in moist and wet rooms.
This oil-resistant, highly flexible and abrasion-proof PUR-connection drag chain cable from LAPP can be used even in damp and wet conditions. Suitable for use in power chains or in moving machine parts.
- Coded numbers
- Suitable for travel up to 10m
- Bend radius (no. of ODs for fixed installation): 4
- Bend radius (no. of ODs for flexible installation): 7.5
- Cable features: Suitable for drag chains, Flame-retardant, highly flexible
- Cable Type: ÖLFLEX® FD CLASSIC 810 Drag chain cable
- Colour: Grey
- Core layout: Extra-finely stranded according to VDE 0295 class 6/IEC 60228 Class 66
- Cross section 12 x 0.5mm²
- Max. temperature range (fixed installation): +80°C
- Max. temperature range (flexible installation): +70°C
- Min. temperature range (fixed installation): -40°C
- Min. temperature range (flexible installation): 0°C
- No. of leads 12
- Nominal voltage: 500V
- Nominal voltage U0: 300V
- Outside diameter: 10mm
- Shielded: No
- Sold per metre: Yes
- Standards: DIN VDE compliant, conductors to VDE 0245/0281 sheath to VDE 0245/0281
- Manufacturer's part 0026105
This cable will be supplied in one continuous length, subject to the maximum reel size. For example, an order for 7 metres of cable will result in a single 7-metre cable being supplied, not 7 one-metre lengths.
| Colour |
Grey |
| Number of Cores |
12 |
| Conductor Cross Section |
12 x 0.5mm² |
| Insulation Material |
PVC |
| Type |
Drag chain cable |
| Cable Diameter |
10mm |
| Sold by Metre |
Yes |
